Apantallado p cavidad, marco lateral for BMW 7 Series G11 LCI 730dX (2020)

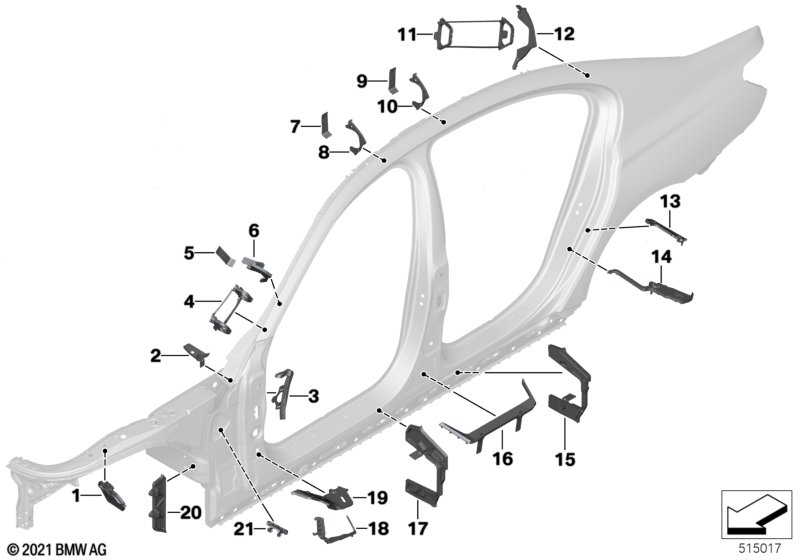

This Apantallado p cavidad, marco lateral technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pza. forma p apoyo pasa-rueda, delantera | 2 | 12/2020 | 41007342793 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Pza. forma p apoyo pasa-rueda, delantera | 2 | 41007497486 | Shop at ECS Tuning | ||||||
| 02 | Pieza d forma columna A sup. interior iz | 1 | 41007406927 | Shop at ECS Tuning | ||||||
| 02 | Pieza d forma columna A sup. interior de | 1 | 41007406928 | Shop at ECS Tuning | ||||||
| 03 | Pieza d forma columna A sup. exterior iz | 1 | 41007406925 | Shop at ECS Tuning | ||||||
| 03 | Pieza forma columna A sup. exterior de. | 1 | 41007406926 | Shop at ECS Tuning | ||||||
| 04 | Pza confor refue. marco techo del. izq. | 1 | 41007359191 | Shop at ECS Tuning | ||||||
| 04 | Pza confor refue. marco techo del. der. | 1 | 41007359192 | Shop at ECS Tuning | ||||||
| 05 | Pieza conformada marco del techo int. | 2 | 41007342791 | Shop at ECS Tuning | ||||||
| 06 | Pieza de forma marco de techo exter.del. | 2 | 41007366663 | Shop at ECS Tuning | ||||||
| 07 | Pieza conformada marco del techo int. | 2 | 41007342791 | Shop at ECS Tuning | ||||||
| 08 | Pza conformada marco techo centro ext. | 2 | 41007366667 | Shop at ECS Tuning | ||||||
| 09 | Pieza conformada marco del techo int. | 2 | 41007342791 | Shop at ECS Tuning | ||||||
| 10 | Pza conformada marco techo centro ext. | 2 | 41007366667 | Shop at ECS Tuning | ||||||
| 11 | Pza confor refue. marco techo tras. iz. | 1 | 41007342801 | Shop at ECS Tuning | ||||||
| 11 | Pza confor refue. marco techo tras. de. | 1 | 41007342802 | Shop at ECS Tuning | ||||||
| 12 | Pieza de forma p columna C exterior izqu | 1 | 41007367313 | Shop at ECS Tuning | ||||||
| 12 | Pieza de forma p columna C,exterior dch. | 1 | 41007367314 | Shop at ECS Tuning | ||||||
| 13 | Pieza conform.montante C int.abajo izd. | 1 | 41007342797 | Shop at ECS Tuning | ||||||
| 13 | Pieza conform.montante C int.abajo dch. | 1 | 41007342798 | Shop at ECS Tuning | ||||||
| 14 | Pieza conformada entrada izq. | 1 | 41007342795 | Shop at ECS Tuning | ||||||
| 14 | Pieza de forma p entrada dcha. | 1 | 41007342796 | Shop at ECS Tuning | ||||||
| 15 | Pieza pref. montante B atrás ext. izq. | 1 | 41007342785 | Shop at ECS Tuning | ||||||
| 15 | Pieza pref. montante B atrás ext. der. | 1 | 41007342786 | Shop at ECS Tuning | ||||||
| 16 | Pza pref. montante B inf. exterior izq. | 1 | 41007396793 | Shop at ECS Tuning | ||||||
| 16 | Pza pref. montante B inf. exterior der. | 1 | 41007396794 | Shop at ECS Tuning | ||||||
| 17 | Pieza pref. montante B del. ext. izq. | 1 | 41007342783 | Shop at ECS Tuning | ||||||
| 17 | Pieza pref. montante B del. ext. der. | 1 | 41007342784 | Shop at ECS Tuning | ||||||
| 18 | Pieza d forma columna A inf. exterior iz | 1 | 41217330221 | Shop at ECS Tuning | ||||||
| 18 | Pieza d forma columna A inf. exterior de | 1 | 41217330222 | Shop at ECS Tuning | ||||||
| 19 | Pieza d forma columna A inf. interior iz | 1 | 41217330223 | Shop at ECS Tuning | ||||||
| 19 | Pieza d forma columna A inf. interior de | 1 | 41217330224 | Shop at ECS Tuning | ||||||
| 20 | Pza conform. soporte apoyo salpicadero | 2 | 41007330413 | Shop at ECS Tuning | ||||||
| 21 | Pza.conformada parte infer.montante A | 2 | 41007457797 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
