Bastidor lateral interior for BMW 7 Series G12 LCI 730LdX (2020)

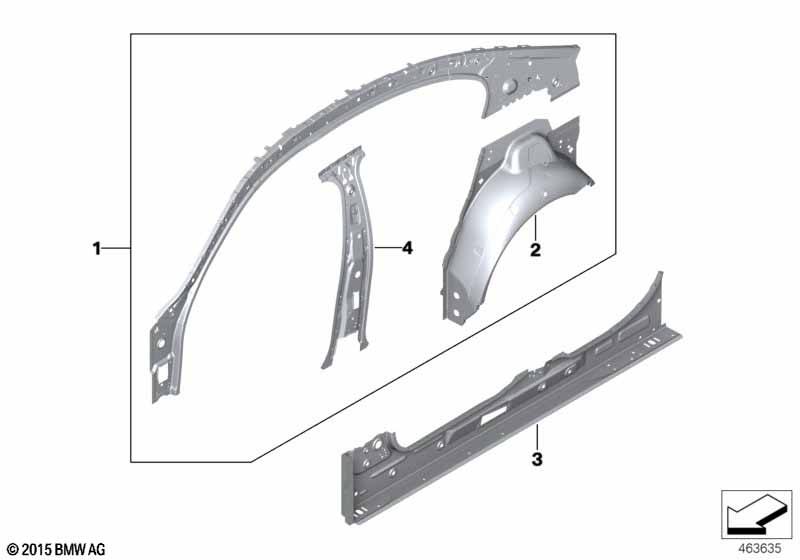

This Bastidor lateral interior technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Marco laterale interior izqu. | 1 | 41007413099 | Shop at ECS Tuning | ||||||
| 01 | Marco laterale interior dcha. | 1 | 41007413100 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Bulón de soldar roscado | M6X14 | 2 | 07147186109 | Shop at ECS Tuning | |||||
| 02 | Chapa interior de pasaruedas tras.izqu. | 1 | 41217421817 | Shop at ECS Tuning | ||||||
| 02 | Chapa interior de pasaruedas tras.dcha. | 1 | 41217421818 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Bulón de soldar roscado | M6X14 | 2 | 07147186109 | Shop at ECS Tuning | |||||
| 03 | Larguero interior izquierda | 1 | 41007401425 | Shop at ECS Tuning | ||||||
| 03 | Larguero interior derecha | 1 | 41007401426 | Shop at ECS Tuning | ||||||
| 04 | Columna B interior izqu. | 1 | 41007460433 | Shop at ECS Tuning | ||||||
| 04 | Columna B interior derecha | 1 | 41007460434 | Shop at ECS Tuning | ||||||
