Revest.techo-cielo/asidero de sujecion for BMW 6 Series E24 633CSi (1984)

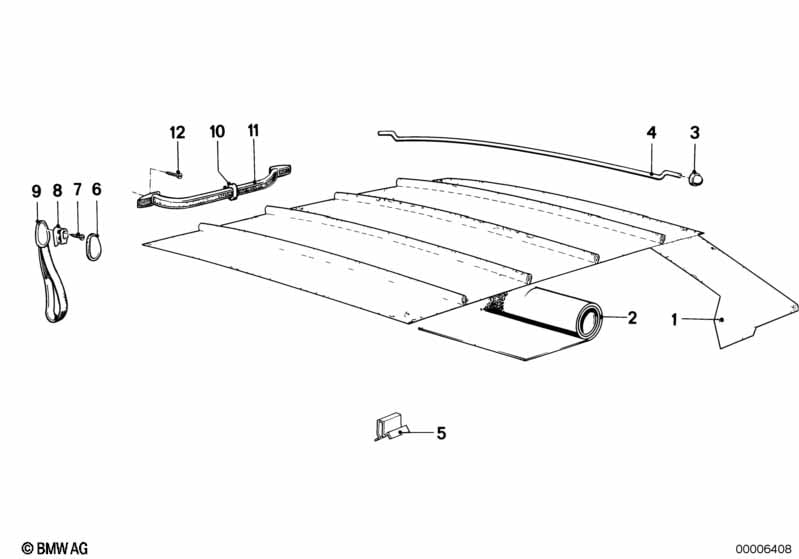

This Revest.techo-cielo/asidero de sujecion technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rev. interior, techo corredizo ejecución | BEIGE | 1 | 09/1982 | 51441909666 | $302.50 | Finalizado | Shop at ECS Tuning | ||
| 01 | Rev. interior,techo corredizo terciopelo | GRAU | 1 | 09/1982 | 51441929266 | $312.12 | Finalizado | Shop at ECS Tuning | ||
| 02 | Revestiemiento del cielo terciopelo | B=1350MM;GRAU | X | 09/1984 | 06/1987 | 51921976348 | $83.21 | Finalizado | Shop at ECS Tuning | |
| 02 | Revestiemiento del cielo terciopelo | B=1350MM;BEIGE | X | 09/1984 | 06/1987 | 51921976349 | Finalizado | Shop at ECS Tuning | ||
| 03 | Boquilla | 8 | 51441815634 | $1.37 | Shop at ECS Tuning | |||||
| 04 | Estribo de alambre | 4 | 51441905938 | $9.74 | Finalizado | Shop at ECS Tuning | ||||
| 05 | Grapa | X | 51441805831 | $1.56 | Shop at ECS Tuning | |||||
| Para vehículos con Techo corredizo elevador |
=Sí |
|||||||||
| 06 | Caperuza | 2 | 51161905940 | $9.10 | Shop at ECS Tuning | |||||
| Para vehículos con High Line y Techo corredizo elevador |
=Sí =Sí |
|||||||||
| 07 | Tornillo cabeza reconda avell.p.palastro | ST4,8X19 | 4 | 07119902483 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Chapa soporte | 2 | 51169558272 | $8.84 | Finalizado | Shop at ECS Tuning | ||||
| 09 | Presilla | 2 | 51169558273 | $20.36 | Finalizado | Shop at ECS Tuning | ||||
| 10 | Ganchos para ropa | 2 | 51161900310 | $3.29 | Finalizado | Shop at ECS Tuning | ||||
| 11 | Agarradero trasera | 2 | 51161839865 | $36.27 | Shop at ECS Tuning | |||||
| 12 | Tornillo alomado para chapa | ST4,8X13 | 8 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Revest.techo-cielo/asidero de sujecion?
- This technical diagram illustrates the Revest.techo-cielo/asidero de sujecion within the Equipo del vehículo group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Rev. interior, techo corredizo ejecución (Part #51441909666).
- Which models use the hardware listed in this Revest.techo-cielo/asidero de sujecion?
- The hardware and components featured in the Revest.techo-cielo/asidero de sujecion are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Rev. interior, techo corredizo ejecución (51441909666) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Revest.techo-cielo/asidero de sujecion assembly?
- Each item in the Revest.techo-cielo/asidero de sujecion corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Rev. interior, techo corredizo ejecución by locating its position on the schematic, which then links to the official BMW part number 51441909666 for the Equipo del vehículo section.
