Soporte trasero for BMW 7 Series G12 730LdX (2018)

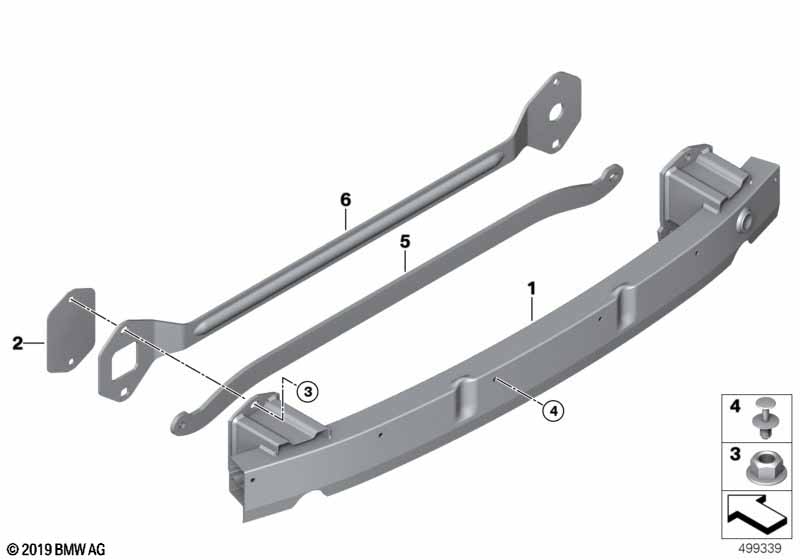

This Soporte trasero technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Enganche de remolque |
S3ACA=No |
|||||||||
| 01 | Portador parachoques trasero | 1 | 51127377217 | Shop at ECS Tuning | ||||||
| 02 | Junta | 2 | 51125A7CEA6 | Shop at ECS Tuning | ||||||
| 03 | Tuerca hexagonal | 4 | 07147266441 | Shop at ECS Tuning | ||||||
| 04 | Remache dilatable | D = 6MM | 6 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 730LdX Soporte trasero?
- This technical diagram illustrates the Soporte trasero within the Equipo del vehículo group for the 7 Series G12 730LdX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Portador parachoques trasero (Part #51127377217).
- Which models use the hardware listed in this Soporte trasero?
- The hardware and components featured in the Soporte trasero are specific to the 7 Series G12 730LdX produced during 2018. These technical specifications ensure that parts like the Portador parachoques trasero (51127377217) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Soporte trasero assembly?
- Each item in the Soporte trasero corresponds to the numbered list below the illustration. For the 7 Series G12 730LdX, you can identify the Portador parachoques trasero by locating its position on the schematic, which then links to the official BMW part number 51127377217 for the Equipo del vehículo section.
