Revestimiento d l bajos trasera for BMW 5 Series G30 530dX (2020)

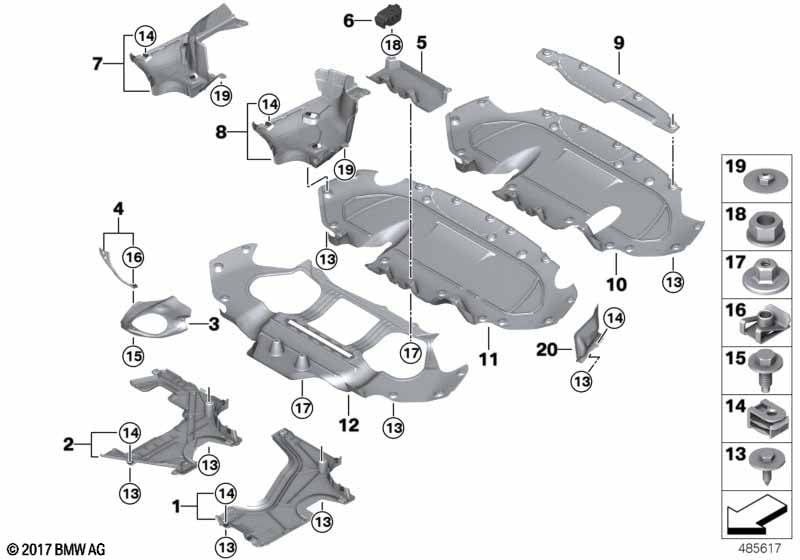

This Revestimiento d l bajos trasera technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Revestim. bajos depósito combust. izq. | 1 | 51757340789 | Shop at ECS Tuning | ||||||
| 01 | Revestim. bajos depósito combust. der. | 1 | 51757397582 | Shop at ECS Tuning | ||||||
| 06 | Silenciador salida de bordillo | 2 | 51757399327 | Shop at ECS Tuning | ||||||
| 07 | Revestimiento bajos tras. izq. | 1 | 51757340787 | Shop at ECS Tuning | ||||||
| 08 | Revestimiento bajos tras der. | 1 | 51757351648 | Shop at ECS Tuning | ||||||
| 09 | Revestimiento d l bajos trasera | 1 | 51757399329 | Shop at ECS Tuning | ||||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=Sí S1CBA=Sí S715A=Sí |
|||||||||
| 10 | Difusor trasero, diésel | 1 | 03/2018 | 51757404729 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=Sí S1CBA=Sí S715A=No |
|||||||||
| 10 | Difusor trasero, diésel | 1 | 03/2018 | 51757404729 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=Sí S1CBA=No S715A=Sí |
|||||||||
| 10 | Difusor trasero, diésel | 1 | 03/2018 | 51757404729 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=Sí S1CBA=No S715A=No |
|||||||||
| 10 | Difusor trasero, diésel | 1 | 03/2018 | 51757404729 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=No S1CBA=Sí S715A=Sí |
|||||||||
| 10 | Difusor trasero, diésel | 1 | 03/2018 | 51757404729 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea y CO2 volumen y Paquete aerodinámico M |
L802A=No S1CBA=Sí S715A=No |
|||||||||
| 11 | Difusor trasero, diésel | 1 | 51759448790 | Shop at ECS Tuning | ||||||
| 13 | Tornillo hexagonal | TS5X20 SW8 D=22 | X | 01/2021 | 07149213164 | $0.38 | Shop at ECS Tuning | |||
| 14 | Tuerca de plástico clip C | TS5 | X | 07147311312 | Shop at ECS Tuning | |||||
| 17 | Tuerca sombrerete plást. con arandela | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Tuerca hexagonal | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 19 | Tuerca de chapa | D=30MM, ZNS3 | 3 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530dX Revestimiento d l bajos trasera?
- This technical diagram illustrates the Revestimiento d l bajos trasera within the Equipo del vehículo group for the 5 Series G30 530dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Revestim. bajos depósito combust. izq. (Part #51757340789).
- Which models use the hardware listed in this Revestimiento d l bajos trasera?
- The hardware and components featured in the Revestimiento d l bajos trasera are specific to the 5 Series G30 530dX produced during 2020. These technical specifications ensure that parts like the Revestim. bajos depósito combust. izq. (51757340789) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Revestimiento d l bajos trasera assembly?
- Each item in the Revestimiento d l bajos trasera corresponds to the numbered list below the illustration. For the 5 Series G30 530dX, you can identify the Revestim. bajos depósito combust. izq. by locating its position on the schematic, which then links to the official BMW part number 51757340789 for the Equipo del vehículo section.
