Protección de bordes / Moldura entrada for BMW 3 Series E46 325ti (2004)

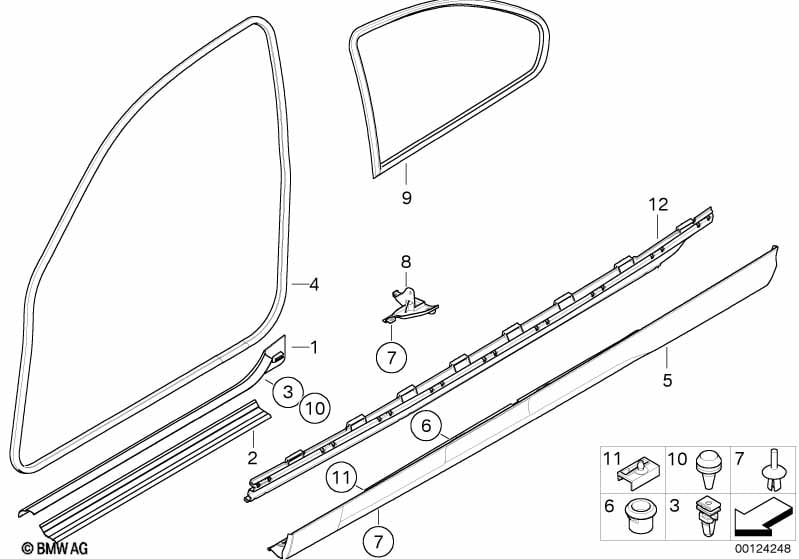

This Protección de bordes / Moldura entrada technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con gris |
TT=Sí |
|||||||||
| 01 | Moldura de entrada interior izqu. | GRAU | 1 | 51477003943 | Shop at ECS Tuning | |||||
| 01 | Moldura de entrada interior dcha. | GRAU | 1 | 51477003944 | Shop at ECS Tuning | |||||
| Para vehículos con beige claro 2 |
HC=Sí |
|||||||||
| 01 | Moldura de entrada interior izqu. | BEIGE | 1 | 51477003945 | Shop at ECS Tuning | |||||
| 01 | Moldura de entrada interior dcha. | BEIGE | 1 | 51477003946 | Finalizado | Shop at ECS Tuning | ||||
| Para vehículos con antracita o poetic-blue o azul o naranja o pistazie o peach o Rojo o lavanda dunkel o negro o tanin-rot o topas-blau |
AT=Sí AU=Sí BL=Sí OG=Sí PI=Sí PP=Sí RE=Sí SE=Sí SW=Sí TD=Sí TO=Sí |
|||||||||
| 01 | Moldura de entrada interior izqu. | SCHWARZ | 1 | 51477003939 | Shop at ECS Tuning | |||||
| 01 | Moldura de entrada interior dcha. | SCHWARZ | 1 | 51477003940 | Shop at ECS Tuning | |||||
| 02 | Paramento de entrada | 2 | 51478252711 | Shop at ECS Tuning | ||||||
| Para vehículos con Identificación BMW Individual |
S778A=Sí |
|||||||||
| 02 | Paramento de entrada | "INDIVIDUAL" | 2 | 51477894847 | $133.92 | Shop at ECS Tuning | ||||
| Para vehículos con Paquete aerodinámico |
S716A=Sí |
|||||||||
| 02 | Paramento de entrada | M | 2 | 51477894845 | Shop at ECS Tuning | |||||
| 03 | Grapa de faldon de puerta | 16 | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 03 | Clip | 22 | 03/2002 | 51717895038 | Shop at ECS Tuning | |||||
| 04 | Cantonera | SCHWARZ | 2 | 51727047341 | Shop at ECS Tuning | |||||
| 05 | Aleron lateral izquiera con aparejo | 1 | 03/2003 | 51717125189 | Shop at ECS Tuning | |||||
| 05 | Moldura umbral derecha imprimada | 1 | 03/2003 | 51717125190 | Shop at ECS Tuning | |||||
| Para vehículos con Paquete aerodinámico |
S716A=Sí |
|||||||||
| 05 | Aleron lateral izquiera con aparejo | -M- | 1 | 51717894817 | Shop at ECS Tuning | |||||
| 05 | Moldura umbral derecha imprimada | -M- | 1 | 51717894818 | Shop at ECS Tuning | |||||
| 06 | Boquilla verde | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Remache dilatable | 2 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 08 | Recubrimiento izquierda | 1 | 51718219167 | $7.22 | Shop at ECS Tuning | |||||
| 08 | Recubrimiento derecho | 1 | 51718219168 | $7.22 | Shop at ECS Tuning | |||||
| 09 | Junta cristal lateral trasero | SCHWARZ | 2 | 51727047349 | Shop at ECS Tuning | |||||
| 10 | Tapon | 2 | 03/2002 | 51711927439 | $0.58 | Shop at ECS Tuning | ||||
| 11 | Grapa | 24 | 51717065608 | Shop at ECS Tuning | ||||||
| 11 | Grapa | NATUR | 24 | 51718184574 | $0.58 | Shop at ECS Tuning | ||||
| 12 | Suplemento listón estribera lado izq. | 1 | 03/2003 | 51717120003 | Shop at ECS Tuning | |||||
| 12 | Suplemento estribera lado derecho | 1 | 03/2003 | 51717120004 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325ti Protección de bordes / Moldura entrada?
- This technical diagram illustrates the Protección de bordes / Moldura entrada within the Equipo del vehículo group for the 3 Series E46 325ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Moldura de entrada interior izqu. (Part #51477003943).
- Which models use the hardware listed in this Protección de bordes / Moldura entrada?
- The hardware and components featured in the Protección de bordes / Moldura entrada are specific to the 3 Series E46 325ti produced during 2004. These technical specifications ensure that parts like the Moldura de entrada interior izqu. (51477003943) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Protección de bordes / Moldura entrada assembly?
- Each item in the Protección de bordes / Moldura entrada corresponds to the numbered list below the illustration. For the 3 Series E46 325ti, you can identify the Moldura de entrada interior izqu. by locating its position on the schematic, which then links to the official BMW part number 51477003943 for the Equipo del vehículo section.
