Mecanis.d.la ventanil.d.la puerta traser for BMW 3 Series E46 325ti (2004)

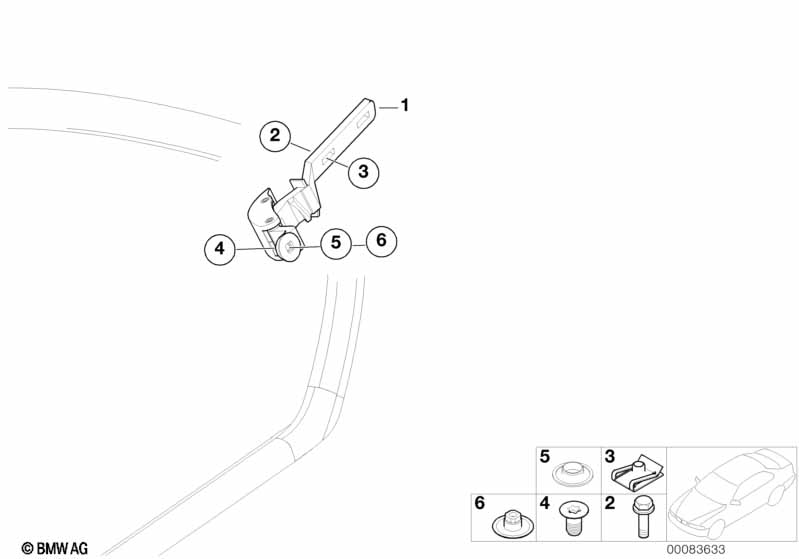

This Mecanis.d.la ventanil.d.la puerta traser technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mecanismo de ventanilla izqu. | 1 | 51367001619 | $17.33 | Shop at ECS Tuning | |||||
| 01 | Mecanismo de ventanilla dcha. | 1 | 51367001620 | $13.28 | Shop at ECS Tuning | |||||
| 02 | Tornillo hexagonal | M5X14 | 4 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Tuerca de chapa | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 04 | Tornillo avellanado | 2 | 51368144046 | $0.39 | Shop at ECS Tuning | |||||
| 05 | Apoyo | 2 | 51368144048 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Tuerca | 2 | 51368144980 | $2.40 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325ti Mecanis.d.la ventanil.d.la puerta traser?
- This technical diagram illustrates the Mecanis.d.la ventanil.d.la puerta traser within the Equipo del vehículo group for the 3 Series E46 325ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Mecanismo de ventanilla izqu. (Part #51367001619).
- Which models use the hardware listed in this Mecanis.d.la ventanil.d.la puerta traser?
- The hardware and components featured in the Mecanis.d.la ventanil.d.la puerta traser are specific to the 3 Series E46 325ti produced during 2004. These technical specifications ensure that parts like the Mecanismo de ventanilla izqu. (51367001619) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mecanis.d.la ventanil.d.la puerta traser assembly?
- Each item in the Mecanis.d.la ventanil.d.la puerta traser corresponds to the numbered list below the illustration. For the 3 Series E46 325ti, you can identify the Mecanismo de ventanilla izqu. by locating its position on the schematic, which then links to the official BMW part number 51367001619 for the Equipo del vehículo section.
