Acristalamiento II for BMW 3 Series E46 325ti (2004)

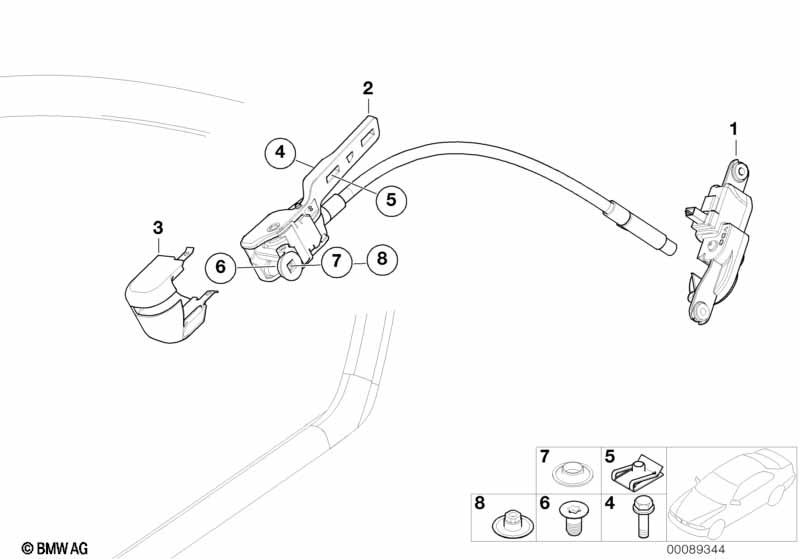

This Acristalamiento II technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accionamiento de ventanilla ventilacion | 2 | 67158381521 | Shop at ECS Tuning | ||||||
| 02 | Mecanismo de ventanilla izqu. | 1 | 51377001621 | $71.15 | Shop at ECS Tuning | |||||
| 02 | Mecanismo de ventanilla dcha. | 1 | 51377001622 | $71.15 | Shop at ECS Tuning | |||||
| 03 | Caperuza cobertera izquierda | 1 | 51377028919 | $3.63 | Shop at ECS Tuning | |||||
| 03 | Caperuza cobertera derecho | 1 | 51377028920 | $3.63 | Shop at ECS Tuning | |||||
| 04 | Tornillo hexagonal | M5X14 | 4 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Tuerca de chapa | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Tornillo avellanado | 2 | 51368144046 | $0.39 | Shop at ECS Tuning | |||||
| 07 | Apoyo | 2 | 51368144048 | $0.38 | Shop at ECS Tuning | |||||
| 08 | Tuerca | 2 | 51368144980 | $2.40 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325ti Acristalamiento II?
- This technical diagram illustrates the Acristalamiento II within the Equipo del vehículo group for the 3 Series E46 325ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Accionamiento de ventanilla ventilacion (Part #67158381521).
- Which models use the hardware listed in this Acristalamiento II?
- The hardware and components featured in the Acristalamiento II are specific to the 3 Series E46 325ti produced during 2004. These technical specifications ensure that parts like the Accionamiento de ventanilla ventilacion (67158381521) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Acristalamiento II assembly?
- Each item in the Acristalamiento II corresponds to the numbered list below the illustration. For the 3 Series E46 325ti, you can identify the Accionamiento de ventanilla ventilacion by locating its position on the schematic, which then links to the official BMW part number 67158381521 for the Equipo del vehículo section.
