Moldura faldón / arco de rueda for BMW 3 Series E46 325ti (2004)

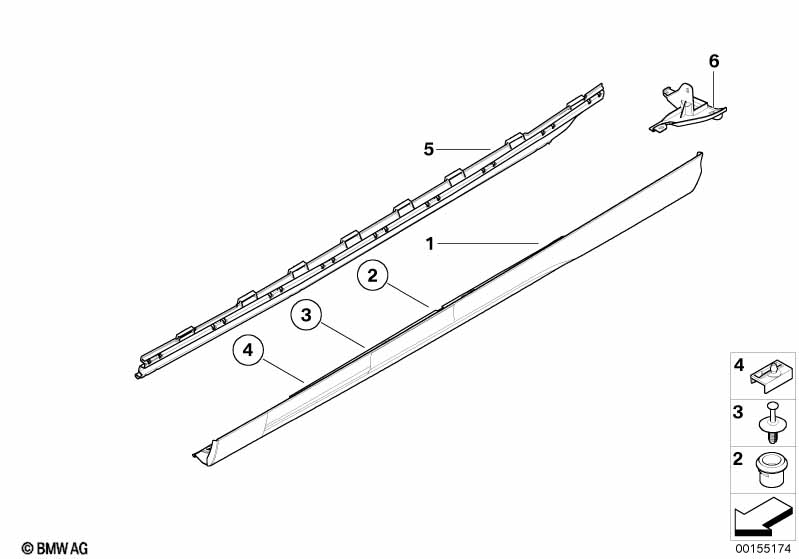

This Moldura faldón / arco de rueda technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moldura umbral derecha barnizada | CODE - UNI/MET. | 1 | 03/2003 | 51710031800 | Finalizado | Shop at ECS Tuning | |||
| 01 | Aleron lateral izquierda barnizado | CODE - UNI/MET. | 1 | 03/2003 | 51710031801 | Finalizado, +core | Shop at ECS Tuning | |||
| 01 | Aleron lateral izquiera con aparejo | 1 | 03/2003 | 51717125189 | Shop at ECS Tuning | |||||
| 01 | Moldura umbral derecha imprimada | 1 | 03/2003 | 51717125190 | Shop at ECS Tuning | |||||
| 02 | Boquilla verde | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Remache dilatable | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Grapa | X | 51717065608 | Shop at ECS Tuning | ||||||
| 05 | Suplemento listón estribera lado izq. | 1 | 03/2003 | 51717120003 | Shop at ECS Tuning | |||||
| 05 | Suplemento estribera lado derecho | 1 | 03/2003 | 51717120004 | Shop at ECS Tuning | |||||
| 06 | Recubrimiento izquierda | 1 | 51718219167 | $7.22 | Shop at ECS Tuning | |||||
| 06 | Recubrimiento derecho | 1 | 51718219168 | $7.22 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
