Consola central compartimentos for BMW 3 Series E46 325ti (2004)

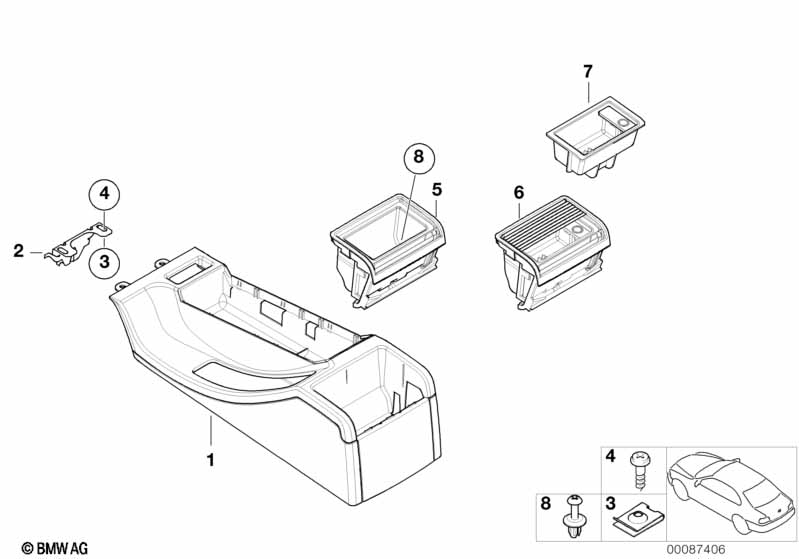

This Consola central compartimentos technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | CONSOLA corta | SCHWARZ | 1 | 51168234154 | $65.30 | Shop at ECS Tuning | ||||
| 01 | CONSOLA corta | HELLBEIGE | 1 | 51168234155 | $65.30 | Shop at ECS Tuning | ||||
| 01 | CONSOLA corta | GRAU | 1 | 51168248507 | $65.30 | Shop at ECS Tuning | ||||
| 02 | Soporte | 1 | 51168235570 | $1.27 | Shop at ECS Tuning | |||||
| Para vehículos con Teléfono con receptor sin cordón |
S630A=Sí |
|||||||||
| 02 | Soporte | 1 | 51167043584 | $17.19 | Finalizado | Shop at ECS Tuning | ||||
| 03 | Tuerca de chapa | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Tornillo de chapa | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Tornillo de chapa | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Bandeja | SCHWARZ | 1 | 51167027429 | $12.50 | Finalizado | Shop at ECS Tuning | |||
| 05 | Bandeja | HELLBEIGE | 1 | 51167027430 | $12.50 | Finalizado, +core | Shop at ECS Tuning | |||
| 06 | Cenicero trasera | SCHWARZ | 1 | 51168225988 | $44.77 | Shop at ECS Tuning | ||||
| 06 | Cenicero trasera | HELLBEIGE | 1 | 51168242739 | $44.77 | Shop at ECS Tuning | ||||
| 06 | Cenicero trasera | GRAU | 1 | 51168248527 | $44.77 | Shop at ECS Tuning | ||||
| 07 | Suplemento | 1 | 51168225529 | $11.22 | Shop at ECS Tuning | |||||
| 08 | Remache dilatable | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
