Bandeja for BMW 3 Series E46 325ti (2004)

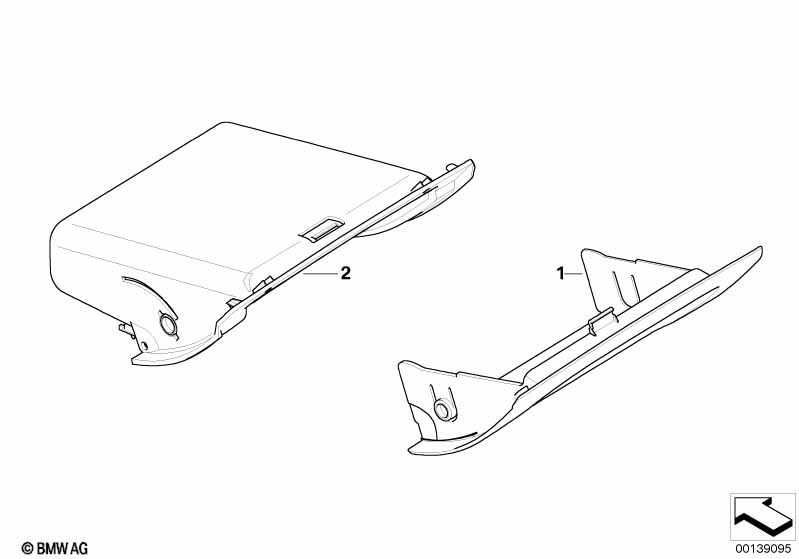

This Bandeja technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con gris |
TT=Sí |
|||||||||
| 01 | Bandeja | OFFEN | 1 | 51457029243 | Shop at ECS Tuning | |||||
| Para vehículos con beige claro 2 |
HC=Sí |
|||||||||
| 01 | Bandeja | OFFEN | 1 | 51457029242 | Shop at ECS Tuning | |||||
| Para vehículos con antracita o poetic-blue o azul o naranja o pistazie o peach o Rojo o lavanda dunkel o negro o tanin-rot o topas-blau |
AT=Sí AU=Sí BL=Sí OG=Sí PI=Sí PP=Sí RE=Sí SE=Sí SW=Sí TD=Sí TO=Sí |
|||||||||
| 01 | Bandeja | OFFEN | 1 | 51457029241 | Finalizado | Shop at ECS Tuning | ||||
| 02 | Carcasa de bandeja plegable | 1 | 51458223192 | Shop at ECS Tuning | ||||||
Notas
- Finalizado = La pieza ya es descontinuada.
