Revestimiento de fondo del maletero for BMW 3 Series E46 325ti (2004)

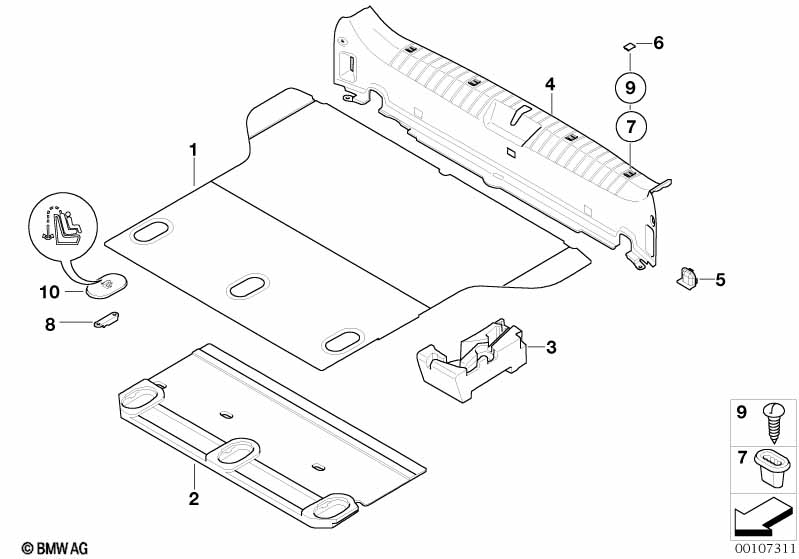

This Revestimiento de fondo del maletero technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con beige claro 2 |
HC=Sí |
|||||||||
| 01 | Bandeja maletero | HELLBEIGE | 1 | 51477016471 | Shop at ECS Tuning | |||||
| Para vehículos con antracita o poetic-blue o azul o naranja o pistazie o peach o Rojo o lavanda dunkel o negro o tanin-rot o topas-blau o gris |
AT=Sí AU=Sí BL=Sí OG=Sí PI=Sí PP=Sí RE=Sí SE=Sí SW=Sí TD=Sí TO=Sí TT=Sí |
|||||||||
| 01 | Bandeja maletero | ANTHRAZIT | 1 | 51477016470 | Shop at ECS Tuning | |||||
| 02 | Pieza de relleno | 1 | 51478252736 | Shop at ECS Tuning | ||||||
| 03 | Apoyo, fondo del maletero | 1 | 51478253383 | Shop at ECS Tuning | ||||||
| 04 | Adorno | 1 | 51478252735 | Shop at ECS Tuning | ||||||
| 05 | Tapa | 2 | 51478213602 | $1.67 | Shop at ECS Tuning | |||||
| 06 | Cierre de tapa | 7 | 51478232583 | $1.67 | Shop at ECS Tuning | |||||
| 07 | Boquilla | 12X6,3 | 5 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Estribo de cierre | 1 | 51718244931 | $4.62 | Shop at ECS Tuning | |||||
| 09 | Tornillo alomado para chapa | ST4,2X13MM | 5 | 07146977198 | $0.08 | Shop at ECS Tuning | ||||
| 09 | Tornillo alomado para chapa | ST4,2X17 | 5 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 10 | Tapa d sistema de retención para niños | ANTHRAZIT | 3 | 51473405879 | $2.21 | Shop at ECS Tuning | ||||
