Piezas suelt.p sujecion rueda de emerg. for BMW 3 Series E46 325ti (2004)

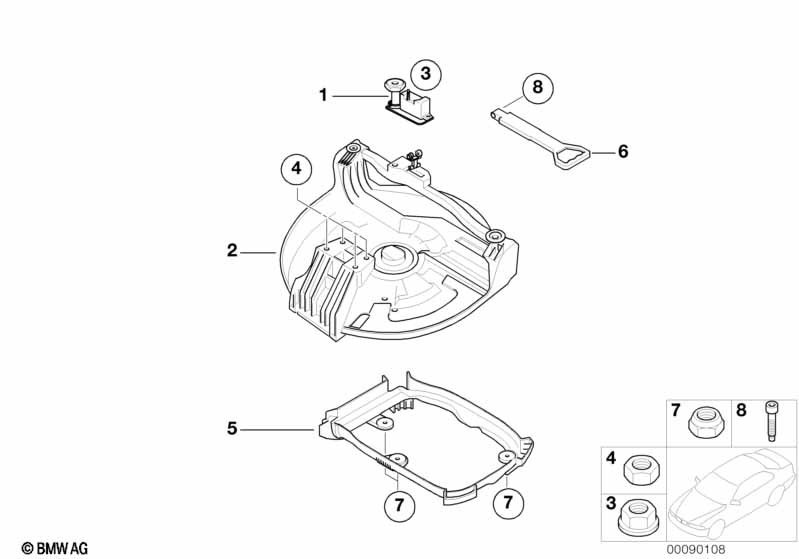

This Piezas suelt.p sujecion rueda de emerg. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mecanismo de descenso rueda d emergencia | 1 | 51713452198 | $34.38 | Finalizado | Shop at ECS Tuning | ||||
| 02 | Coquilla | 1 | 51718253590 | Shop at ECS Tuning | ||||||
| 03 | Tuerca hexagonal con placa | M6 | 1 | 41127028600 | $0.33 | Shop at ECS Tuning | ||||
| 04 | Tuerca hexagonal con placa | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Anillo de centraje | 1 | 51717008320 | Shop at ECS Tuning | ||||||

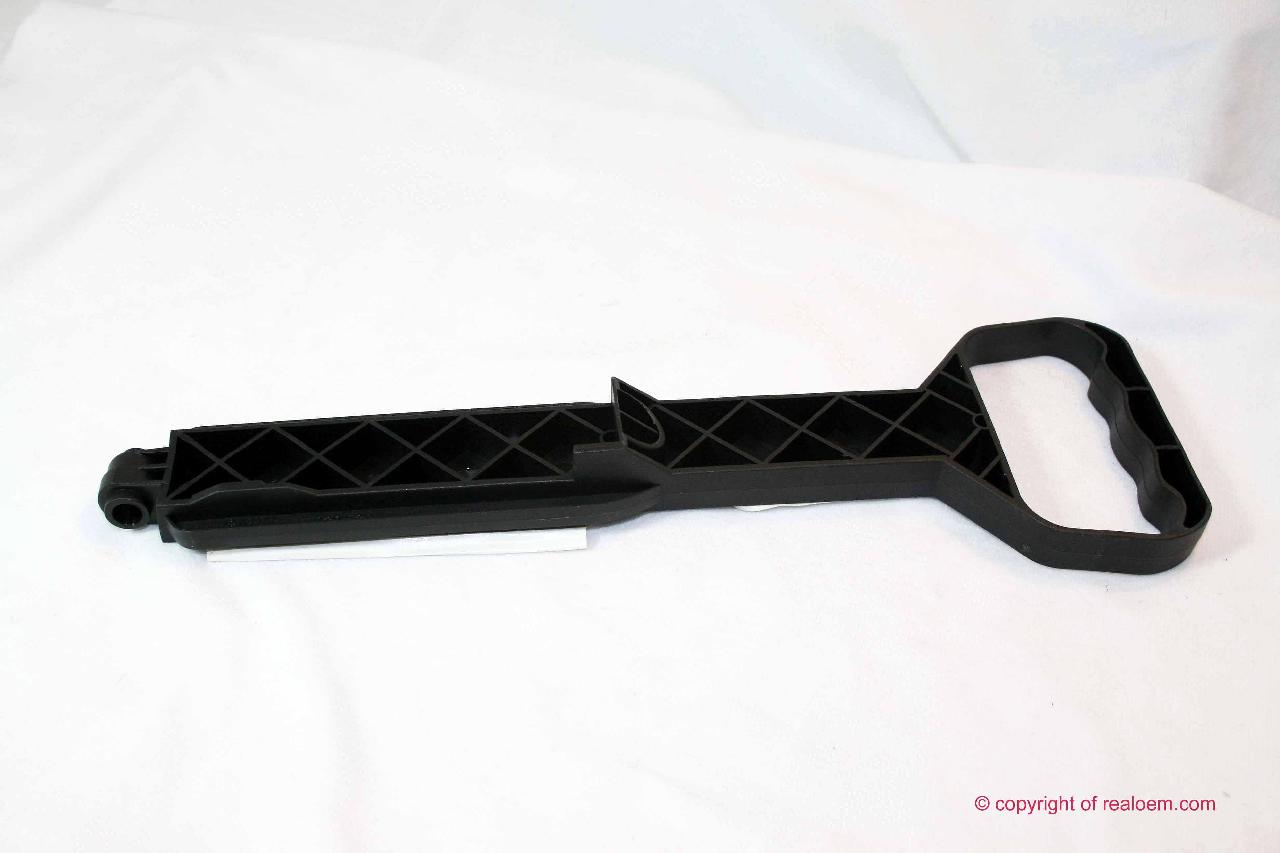

| 06 | Empuñadura | 1 | 51717030528 | $9.47 | Shop at ECS Tuning | |||||
| 07 | Tuerca de plástico | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 08 | Tornillo cilindrico | M5X37,6 | 1 | 41003449961 | $1.05 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325ti Piezas suelt.p sujecion rueda de emerg.?
- This technical diagram illustrates the Piezas suelt.p sujecion rueda de emerg. within the Equipo del vehículo group for the 3 Series E46 325ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Mecanismo de descenso rueda d emergencia (Part #51713452198).
- Which models use the hardware listed in this Piezas suelt.p sujecion rueda de emerg.?
- The hardware and components featured in the Piezas suelt.p sujecion rueda de emerg. are specific to the 3 Series E46 325ti produced during 2004. These technical specifications ensure that parts like the Mecanismo de descenso rueda d emergencia (51713452198) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Piezas suelt.p sujecion rueda de emerg. assembly?
- Each item in the Piezas suelt.p sujecion rueda de emerg. corresponds to the numbered list below the illustration. For the 3 Series E46 325ti, you can identify the Mecanismo de descenso rueda d emergencia by locating its position on the schematic, which then links to the official BMW part number 51713452198 for the Equipo del vehículo section.
