Revestimiento trasero for BMW 5 Series E60 525i (2005)

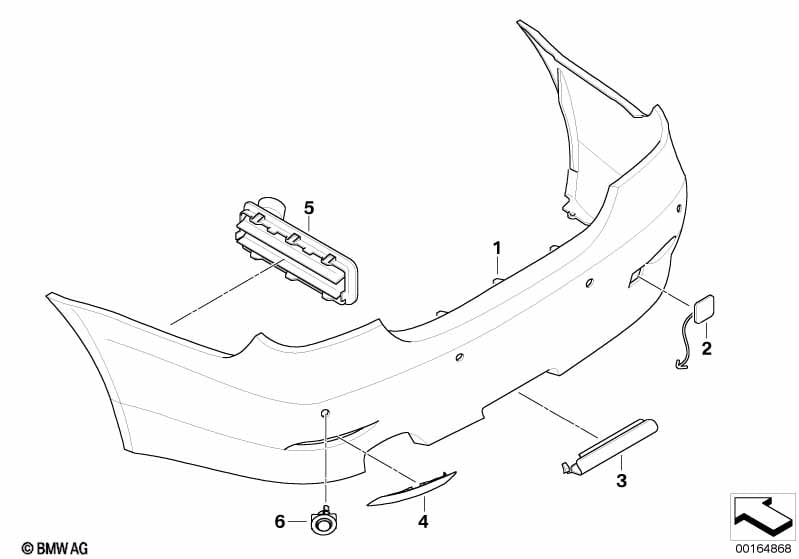

This Revestimiento trasero technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con M Paquete deportivo y Paquete aerodinámico M y Paquete aerodinámico |
P337A=No S715A=No S716A=No |
||||||||
| Para vehículos con Control de distancia de aparcam. (PDC) ¡Atención! Tener en cuenta la información del producto. Usar piezas "solo en combinación con". |
S508A=No |
|||||||||
| 01 | Revestim. parachoques imprimado detrás | PDC | 1 | 51127077940 | $623.02 | +core | Shop at ECS Tuning | |||
| solo en combinacion con | ||||||||||
| -- | Anillo d desacoplamiento convertidor PDC | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Juego de paneles ciegos | GEN 4.2 | 1 | 51125A3F542 | Shop at ECS Tuning | |||||
| -- | Etiqueta adhesiva | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| Para vehículos con Control de distancia de aparcam. (PDC) |
S508A=Sí |
|||||||||
| 01 | Revestim. parachoques imprimado detrás | PDC | 1 | 51127077940 | $623.02 | +core | Shop at ECS Tuning | |||
| 02 | Chapaleta ojete de remolque imprimada | 1 | 51127119151 | $12.39 | Shop at ECS Tuning | |||||
| Para vehículos con Dispositivo de enganche desmont. |
S235A=Sí |
|||||||||
| 03 | Chapaleta de disp.de remolque imprimada | 1 | 51127120005 | +core | Shop at ECS Tuning | |||||
| 04 | Reflector izquierda | 1 | 63146915039 | $13.17 | Shop at ECS Tuning | |||||
| 04 | Reflector derecho | 1 | 63146915040 | $13.17 | Shop at ECS Tuning | |||||
| 05 | Respiradero trasero | 2 | 64229303806 | Shop at ECS Tuning | ||||||
| Para vehículos con DVD con intercambiador |
S696A=Sí |
|||||||||
| 05 | Respiradero trasero | 1 | 64226910722 | $8.23 | Finalizado | Shop at ECS Tuning | ||||
| 05 | Respiradero trasero izquierdo | 1 | 64226935439 | $19.07 | Shop at ECS Tuning | |||||
| Para vehículos con Control de distancia de aparcam. (PDC) |
S508A=Sí |
|||||||||
| 06 | Juego alojamientos sensor PDC atrás | PDC | 1 | 51120432217 | $16.65 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- Finalizado = La pieza ya es descontinuada.
