Soporte trasero for BMW 5 Series E60 LCI 520d (2006)

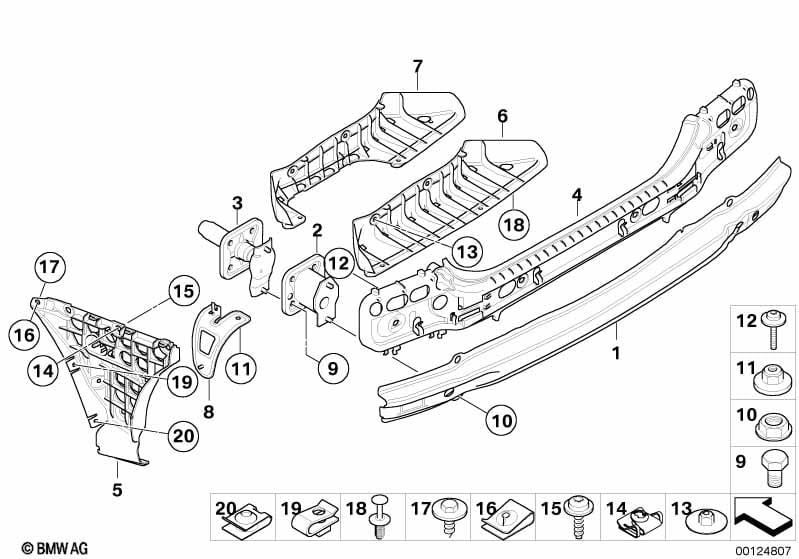

This Soporte trasero technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Portador parachoques trasero | 1 | 51127033712 | $308.58 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Corea |
L802A=Sí |
|||||||||
| 01 | Portador parachoques trasero | 1 | 51127050405 | $339.45 | +core | Shop at ECS Tuning | ||||
| 02 | Elemento de deformación trasero izq. | 1 | 51127033713 | Shop at ECS Tuning | ||||||
| 02 | Elemento de deformación trasero der. | 1 | 51127033714 | Shop at ECS Tuning | ||||||
| Para vehículos con Version para Corea |
L802A=Sí |
|||||||||
| 02 | Elemento de deformación trasero izq. | 1 | 04/2005 | 51127163197 | $39.75 | Shop at ECS Tuning | ||||
| 02 | Elemento de deformación trasero der. | 1 | 04/2005 | 51127163198 | $39.75 | Shop at ECS Tuning | ||||
| 04 | Asiento parachoques tras. centro | 1 | 51127056343 | $33.75 | +core | Shop at ECS Tuning | ||||
| Para vehículos con Paquete aerodinámico M |
S715A=Sí |
|||||||||
| 05 | Asiento parachoques tras. izqu. | M | 1 | 51127896615 | $28.73 | +core | Shop at ECS Tuning | |||
| 05 | Asiento parachoques tras. dcha. | M | 1 | 51127896616 | $28.73 | +core | Shop at ECS Tuning | |||
| 06 | Guia inferior centro | 1 | 51127056388 | $17.92 | Shop at ECS Tuning | |||||
| Para vehículos con Paquete aerodinámico M |
S715A=Sí |
|||||||||
| 06 | Guia inferior centro | M | 1 | 51127897144 | $25.13 | Shop at ECS Tuning | ||||
| Para vehículos con Dispositivo de enganche desmont. y Paquete aerodinámico M |
S235A=Sí S715A=Sí |
|||||||||
| 07 | Guia inferior centro | M | 1 | 51127896619 | $25.13 | +core | Shop at ECS Tuning | |||
| 08 | Soporte de asiento tras. izqu. | 1 | 51127061251 | $11.90 | Shop at ECS Tuning | |||||
| 09 | Tornillo hexagonal | M10X12 | 8 | 07147117789 | $2.56 | Shop at ECS Tuning | ||||
| 10 | Tuerca hexagonal | 4 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 11 | Tuerca hexagonal autofrenable | M6 | 8 | 51128400432 | $0.79 | Shop at ECS Tuning | ||||
| 12 | Tornillo cabeza con arandela | M6 | 4 | 51127070181 | $1.47 | Shop at ECS Tuning | ||||
| 13 | Tuerca de chapa | D=18MM, ZNS-3 | 3 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Tuerca de chapa | ST4,8MM | 8 | 51437001566 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Torx-tornillo con arandela | ISA ST4.8X20 | 6 | 07147075519 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Tuerca de chapa | ST4.8 ZNS3 | 4 | 07146979392 | $0.24 | Shop at ECS Tuning | ||||
| 17 | Tornillo hexagonal para chapa | 6 | 51117070199 | $1.88 | Finalizado | Shop at ECS Tuning | ||||
| 18 | Remache dilatable | 6 | 51127004445 | $0.33 | Shop at ECS Tuning | |||||
| 19 | Tuerca de chapa | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Tuerca de chapa | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- Finalizado = La pieza ya es descontinuada.
