Acristalado piezas adosadas for BMW 7 Series E67 760LiS

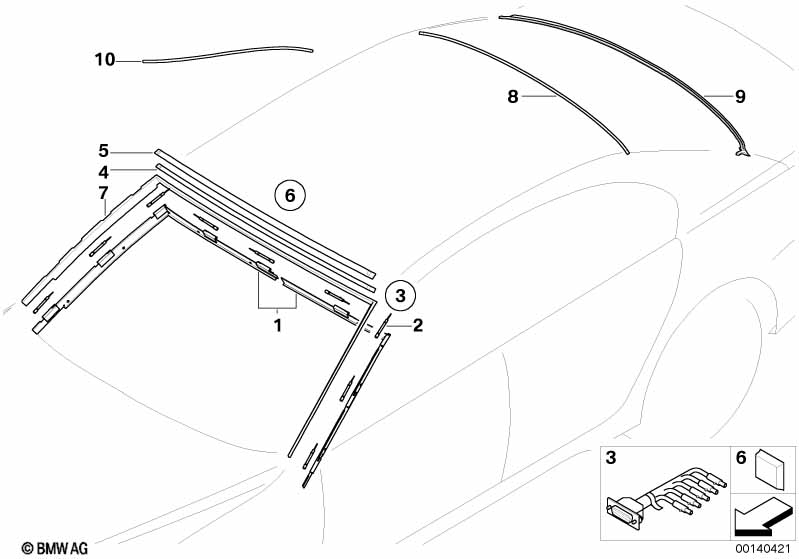

This Acristalado piezas adosadas technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 760LiS. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Marco izquierdo | 1 | 51717179835 | Shop at ECS Tuning | ||||||
| 01 | Marco derecho | 1 | 51717179836 | Shop at ECS Tuning | ||||||
| Para vehículos con Salida de emergencia parabrisa |
S184A=Sí |
|||||||||
| 02 | Casquillo | 9 | 41007129248 | Shop at ECS Tuning | ||||||
| 03 | Juego de cables salida de emergencia | 1 | 61356964134 | Shop at ECS Tuning | ||||||
| 04 | Cubierta parabrisas superior | 1 | 51317172022 | $32.92 | +core | Shop at ECS Tuning | ||||
| 05 | Cubierta parabrisas superior | 1 | 51317183008 | +core | Shop at ECS Tuning | |||||
| 06 | Soporte distanciador autoadhesivo | 12.7X10X3.8 | 4 | 51318172242 | $0.58 | Shop at ECS Tuning | ||||
| Para vehículos con Salida de emergencia parabrisa |
S184A=No |
|||||||||
| 07 | Marco de pegado cristal parabrisas | 1 | 12/2003 | 51317064877 | Finalizado | Shop at ECS Tuning | ||||
| 08 | Recubrimento ventan.traser.superior | 1 | 51318223846 | $41.68 | Shop at ECS Tuning | |||||
| 09 | Cubierta luneta trasera, abajo | 1 | 51717033257 | $46.36 | Shop at ECS Tuning | |||||
| sólo hace juego con cristal trasero | ||||||||||
| 10 | Alambre cortante | 3 | 51317151979 | Shop at ECS Tuning | ||||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- Finalizado = La pieza ya es descontinuada.
