Espejo for BMW R45-R65LS..78-85 R45

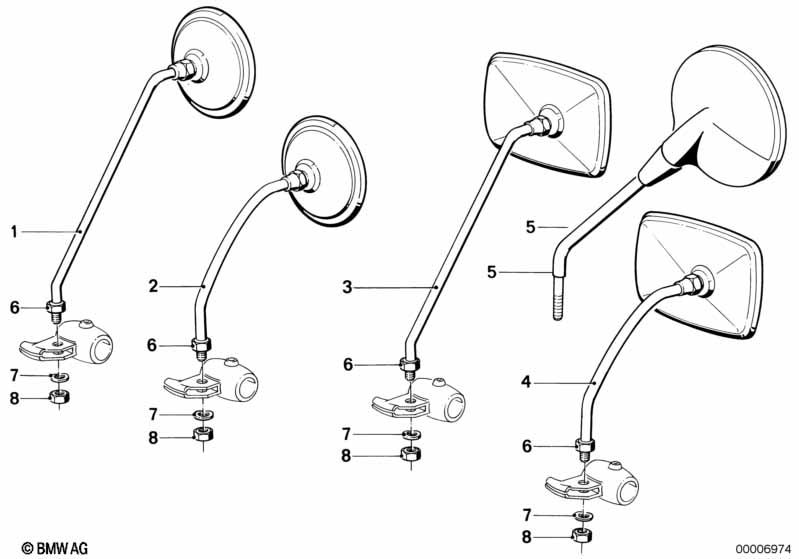

This Espejo technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Espejo cromado largo izquierdo | M8X26 | 1 | 51161236023 | $58.11 | +core | Shop at ECS Tuning | |||
| 01 | Espejo negro mate largo izquierdo | M8X26 | 1 | 51161236025 | $58.11 | +core | Shop at ECS Tuning | |||
| 01 | Espejo cromado largo derecho | M8X35 | 1 | 51161237641 | $44.67 | Finalizado, +core | Shop at ECS Tuning | |||
| 01 | Espejo negro mate largo derecho | M8X35 | 1 | 51161242559 | $58.11 | +core | Shop at ECS Tuning | |||
| PARA MANILLAR ELEVADO | ||||||||||
| 02 | Espejo cromado corto izquierdo | M8X26 | 1 | 51161236021 | $58.11 | Finalizado, +core | Shop at ECS Tuning | |||
| 02 | Espejo cromado corto derecho | M8X35 | 1 | 51161237640 | $44.67 | +core | Shop at ECS Tuning | |||
| 02 | Espejo negro mate corto izquierdo | M8X26 | 1 | 51161240023 | $58.11 | +core | Shop at ECS Tuning | |||
| 02 | Espejo negro mate corto derecho | M8X35 | 1 | 51161242556 | $58.11 | +core | Shop at ECS Tuning | |||
| Para vehículos con Version para Australia |
Y734A=Sí |
|||||||||
| 03 | Espejo angular cromado largo izquierdo | M8X26 | 1 | 51161236029 | $58.11 | +core | Shop at ECS Tuning | |||
| 03 | Espejo derecho | VERCHROMT | 1 | 51161237689 | Finalizado, +core | Shop at ECS Tuning | ||||
| Para vehículos con Version para Australia PARA MANILLAR ELEVADO |
Y734A=Sí |
|||||||||
| 04 | Espejo angular cromado corto derecho | M8X35 | 1 | 51161237690 | Finalizado | Shop at ECS Tuning | ||||
| PARA MANILLAR ELEVADO | ||||||||||
| 05 | Espejo negro largo izquierdo | M8X26 | 1 | 51162302177 | +core | Shop at ECS Tuning | ||||
| 05 | Espejo negro largo derecho | M8X35 | 1 | 51162302178 | +core | Shop at ECS Tuning | ||||
| PARA MANILLAR ELEVADO | ||||||||||
| 05 | Espejo negro corto izquierdo | M8X26 | 1 | 51162302175 | $58.11 | +core | Shop at ECS Tuning | |||
| 05 | Espejo negro corto derecho | M8X35 | 1 | 51162302176 | $58.11 | +core | Shop at ECS Tuning | |||
| 07 | Arandela elastica | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Tuerca hexagonal autofrenable | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- Finalizado = La pieza ya es descontinuada.
