Revestimiento M delantero for BMW 3 Series E90 LCI 320i (2011)

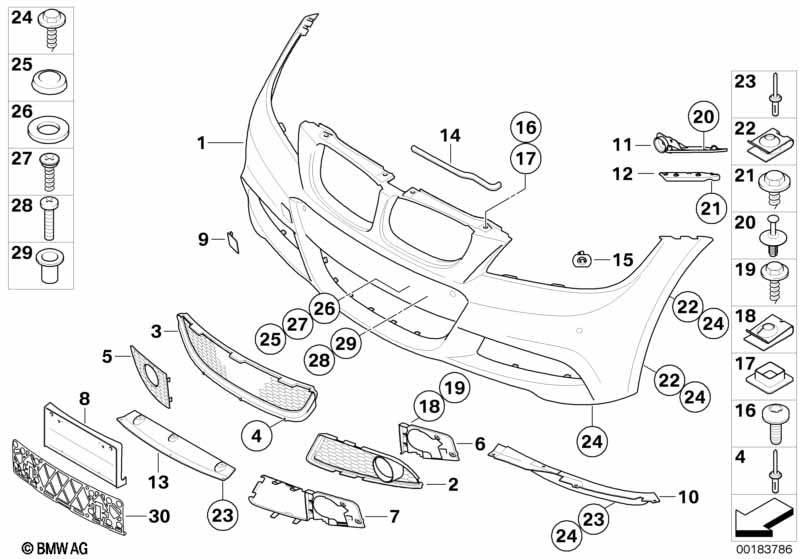

This Revestimiento M delantero technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con Paquete deportivo M II o Paquete aerodinámico M |
S338A=Sí S715A=Sí |
||||||||
| Para vehículos con Control de distancia de aparcam. (PDC) |
S508A=Sí |
|||||||||
| 01 | Revestim. parachoques imprimado del. | -M- PDC | 1 | 09/2008 | 51117891389 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | Juego piezas adosadas parachoques del. | VALUE PARTS | 1 | 09/2008 | 51112410005 | Shop at ECS Tuning | ||||
| Para vehículos con Limpiafaros ¡Atención! Tener en cuenta la información del producto. Usar piezas "solo en combinación con". |
S502A=Sí |
|||||||||
| 01 | Revestim. parachoques imprimado del. | -M- SRA+PDC | 1 | 09/2008 | 51118046990 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | Anillo d desacoplamiento convertidor PDC | 4 | 09/2008 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Juego de paneles ciegos | GEN 4 | 1 | 09/2008 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Juego piezas adosadas parachoques del. | VALUE PARTS | 1 | 09/2008 | 51112410005 | Shop at ECS Tuning | ||||
| -- | Etiqueta adhesiva | NO PDC | 1 | 09/2008 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| Para vehículos con Limpiafaros y Control de distancia de aparcam. (PDC) |
S502A=Sí S508A=Sí |
|||||||||
| 01 | Revestim. parachoques imprimado del. | -M- SRA+PDC | 1 | 09/2008 | 51118046990 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | Juego piezas adosadas parachoques del. | VALUE PARTS | 1 | 09/2008 | 51112410005 | Shop at ECS Tuning | ||||
| Para vehículos con Limpiafaros y Control de distancia de aparcam. (PDC) ¡Atención! Tener en cuenta la información del producto. Usar piezas "solo en combinación con". |
S502A=No S508A=No |
|||||||||
| 01 | Revestim. parachoques imprimado del. | -M- PDC | 1 | 09/2008 | 51117891389 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | Anillo d desacoplamiento convertidor PDC | 4 | 09/2008 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Juego de paneles ciegos | GEN 4 | 1 | 09/2008 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Etiqueta adhesiva | NO PDC | 1 | 09/2008 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| 02 | Reja lateral izqu. | -M- | 1 | 09/2008 | 51117891395 | $27.80 | Shop at ECS Tuning | |||
| 02 | Reja lateral dcha. | -M- | 1 | 09/2008 | 51117891396 | $27.80 | Shop at ECS Tuning | |||
| 03 | Reja, centro | -M- | 1 | 09/2008 | 51118047365 | $26.32 | Shop at ECS Tuning | |||
| Para vehículos con Control de crucero activo |
S541A=Sí |
|||||||||
| 03 | Reja, centro | -M- ACC | 1 | 09/2008 | 51118047366 | $26.32 | Shop at ECS Tuning | |||
| 04 | Remache ciego plegable | 6X21MM | 1 | 09/2008 | 51118222901 | $0.82 | Shop at ECS Tuning | |||
| Para vehículos con Control de crucero activo |
S541A=Sí |
|||||||||
| 05 | Adorno | -M- ACC | 1 | 09/2008 | 51117891394 | $9.52 | Shop at ECS Tuning | |||
| Vehículo con Canal del aire de freno |
||||||||||
| 06 | Asiento faro antiniebla izqu. | -M- | 1 | 09/2008 | 51117891397 | $5.88 | Shop at ECS Tuning | |||
| 06 | Asiento faro antiniebla dcha. | -M- | 1 | 09/2008 | 51117891398 | $5.88 | Shop at ECS Tuning | |||
| VEHICULOS SIN Canal del aire de freno |
||||||||||
| 07 | Asiento faro antiniebla izqu. | -M- | 1 | 09/2008 | 51117892111 | Shop at ECS Tuning | ||||
| 07 | Asiento faro antiniebla dcha. | -M- | 1 | 09/2008 | 51117892112 | Shop at ECS Tuning | ||||
| Para vehículos con Control fijación de matrícula |
S992A=Sí |
|||||||||
| 08 | Soporte para matrícula | -M- US/JAP | 1 | 09/2008 | 51117891529 | $17.58 | Shop at ECS Tuning | |||
| 09 | Chapaleta ojete de remolque imprimada | -M- | 1 | 09/2008 | 51117891391 | $11.39 | Shop at ECS Tuning | |||
| En el pedido indicar código de solor | ||||||||||
| 09 | Chapaleta ojete de remolque barnizada | CODE - UNI/MET. | 1 | 09/2008 | 51110037058 | Finalizado | Shop at ECS Tuning | |||
| 10 | Placa deflectora izqu. | -M- | 1 | 09/2008 | 51717892697 | $11.23 | Shop at ECS Tuning | |||
| 10 | Placa deflectora dcha. | -M- | 1 | 09/2008 | 51717892698 | $11.23 | Shop at ECS Tuning | |||
| 11 | Asiento pared lateral izquierda | 1 | 09/2008 | 51117058447 | $5.28 | Shop at ECS Tuning | ||||
| 11 | Asiento pared lateral derecha | 1 | 09/2008 | 51117058448 | $5.28 | Shop at ECS Tuning | ||||
| 12 | Adjunto, parachoques delant. izqu. | 1 | 09/2008 | 51117134097 | $5.25 | Shop at ECS Tuning | ||||
| 12 | Adjunto, parachoques delant. dcha. | 1 | 09/2008 | 51117134098 | $5.25 | Shop at ECS Tuning | ||||
| 13 | Adaptador apantallado compartim. motor | -M- | 1 | 09/2008 | 51117892935 | $17.09 | Shop at ECS Tuning | |||
| 14 | Junta capó delantera | 2 | 09/2008 | 51767143757 | $6.71 | Shop at ECS Tuning | ||||
| 15 | Soporte sensor PDC interior izquierdo | M-PAKET | 1 | 09/2008 | 51117894129 | Shop at ECS Tuning | ||||
| 15 | Soporte sensor PDC interior derecho | M-PAKET | 1 | 09/2008 | 51117894130 | Shop at ECS Tuning | ||||
| 15 | Soporte sensor PDC exterior izquierdo | M-PAKET | 1 | 09/2008 | 51117894497 | Shop at ECS Tuning | ||||
| 15 | Soporte sensor PDC exterior derecho | M-PAKET | 1 | 09/2008 | 51117894498 | Shop at ECS Tuning | ||||
| 16 | Tornillo Torx | ISA M6X18 SW | 4 | 09/2008 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 17 | Casquilla distanciadora | 4 | 09/2008 | 51117071270 | $0.56 | Shop at ECS Tuning | ||||
| PARA ASIENTO P FONDO DE DEPOSITO faros antiniebla |
||||||||||
| 18 | Tuerca de chapa | ST4,8-9-ZNS3 | 10 | 09/2008 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 19 | Tornillo cabeza cil. | 10 | 09/2008 | 07147118369 | $0.80 | Shop at ECS Tuning | ||||
| 20 | Remache dilatable | 4 | 09/2008 | 07146971349 | $0.26 | Shop at ECS Tuning | ||||
| 21 | Tornillo | SECHSKANT | 4 | 09/2008 | 07143428231 | $0.36 | Shop at ECS Tuning | |||
| 22 | Clip C tuerca autofijadora | ST 4.8 -ZNS3 | 4 | 09/2008 | 07146951655 | $0.20 | Shop at ECS Tuning | |||
| 23 | Remache de macho | 6X25MM | 5 | 09/2008 | 51118047458 | $0.82 | Shop at ECS Tuning | |||
| 24 | Tornillo hexagonal para chapa con arande | ST4,8X16MM | 10 | 09/2008 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| SUJECION DE PLACA DE MATRICULA | ||||||||||
| 25 | Caperuza | WEISS | X | 09/2008 | 51181813017 | $0.21 | Shop at ECS Tuning | |||
| 25 | Caperuza | EUROPABLAU | X | 09/2008 | 51187060798 | $0.21 | Shop at ECS Tuning | |||
| 25 | Caperuza | GOLDGELB | X | 09/2008 | 51188106919 | $0.21 | Shop at ECS Tuning | |||
| 26 | Arandela | 4-200 HV-ZNS3 | 4 | 09/2008 | 07119904207 | Shop at ECS Tuning | ||||
| 27 | Tornillo de estrella p materia sintetica | TS 5X13 | 4 | 09/2008 | 07146959892 | $0.30 | Shop at ECS Tuning | |||
| Para vehículos con Control fijación de matrícula SUJECION DE PLACA DE MATRICULA |
S992A=Sí |
|||||||||
| 27 | Tornillo de estrella p materia sintetica | TS5X25-ZNNID-SW | 4 | 09/2008 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| Solución de reparación SUJECION DE PLACA DE MATRICULA |
||||||||||
| 28 | Tornillo | M5X20 | 4 | 09/2008 | 46612315376 | $0.60 | Shop at ECS Tuning | |||
| 29 | Remache tuerca de cabeza plana | M5 | 4 | 09/2008 | 51138400227 | $2.77 | Shop at ECS Tuning | |||
| 30 | Plantilla taladr. matríc. polic. del. | M | 1 | 09/2008 | 51117891399 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
