Espejos exteriores for BMW 5 Series F10 LCI 530d (2013)

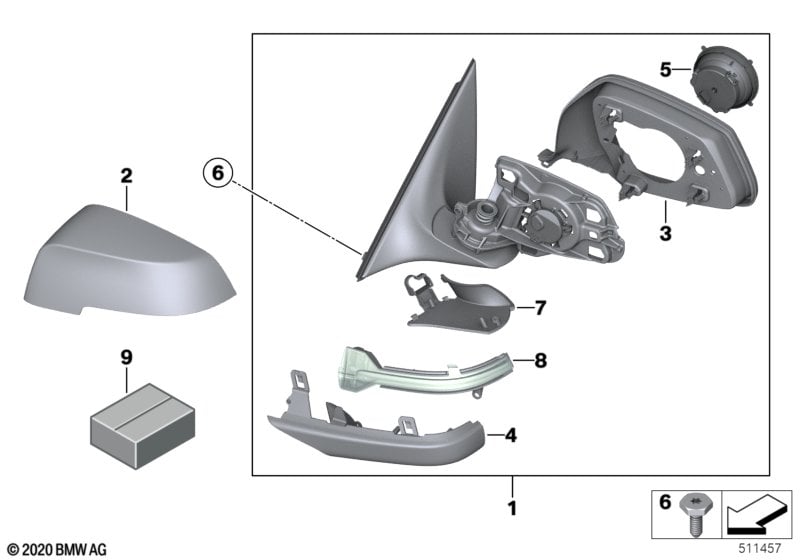

This Espejos exteriores technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Atención: en el modelo M550d las caperuzas de los retrovisores exteriores siempre pintadas en ferricgrey (B55), con independencia del color del veh. Para vehículos con M Paquete deportivo y Modern Line y Luxury Line y Individ. Exterieur Line alum. satinado y Brillo intenso Shadow line |
P337A=No P7S1A=No P7S2A=No S3MBA=No S760A=No |
||||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Aviso cambio de carril y Surround View |
S430A=Sí S5AGA=Sí S5DLA=No |
|||||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 03/2016 | 51167350692 | Shop at ECS Tuning | |||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350691 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Aviso cambio de carril y Surround View |
S430A=Sí S5AGA=Sí S5DLA=Sí |
|||||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 03/2016 | 51167350704 | Shop at ECS Tuning | |||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350703 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Aviso cambio de carril y Surround View |
S430A=Sí S5AGA=No S5DLA=Sí |
|||||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 03/2016 | 51167350700 | Shop at ECS Tuning | |||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350699 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Aviso cambio de carril y Surround View |
S430A=Sí S5AGA=No S5DLA=No |
|||||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 03/2016 | 51167350682 | Shop at ECS Tuning | |||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350681 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. y Aviso cambio de carril y Surround View |
S430A=No S456A=Sí S459A=Sí S5AGA=No S5DLA=No |
|||||||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350649 | Shop at ECS Tuning | ||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 51167350650 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. y Aviso cambio de carril y Surround View |
S430A=No S456A=Sí S459A=No S5AGA=No S5DLA=No |
|||||||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350649 | Shop at ECS Tuning | ||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 51167350650 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. y Aviso cambio de carril y Surround View |
S430A=No S456A=No S459A=Sí S5AGA=No S5DLA=No |
|||||||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350649 | Shop at ECS Tuning | ||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 51167350650 | Shop at ECS Tuning | ||||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. y Aviso cambio de carril y Surround View |
S430A=No S456A=No S459A=No S5AGA=No S5DLA=No |
|||||||||
| 01 | Retrovisor sin cristal calefactado izq. | 1 | 51167350631 | Shop at ECS Tuning | ||||||
| 01 | Espejo exter. sin vidrio calentable dcha | 1 | 51167350632 | Shop at ECS Tuning | ||||||
| 02 | Tapa retrov. exterior izq. imprimada | 1 | 51167308683 | Shop at ECS Tuning | ||||||
| 02 | Tapa retrov. exterior der. imprimada | 1 | 51167308684 | Shop at ECS Tuning | ||||||
| Para vehículos con Carcasas del retrovisor negras o Cubierta de retrovisor blanca S3BEA = código de pintura U668 S3BGA = código de pintura U300 |
S3BEA=Sí S3BGA=Sí |
|||||||||
| 02 | Tapa retrov. exterior izq. imprimada | 1 | 51167308683 | Shop at ECS Tuning | ||||||
| 02 | Tapa retrov. exterior der. imprimada | 1 | 51167308684 | Shop at ECS Tuning | ||||||
| Para vehículos con Aviso cambio de carril |
S5AGA=No |
|||||||||
| 03 | Anillo de retención izqu. | 1 | 51167308639 | Shop at ECS Tuning | ||||||
| 03 | Anillo de retención dcha. | 1 | 51167308640 | Shop at ECS Tuning | ||||||
| Para vehículos con Aviso cambio de carril |
S5AGA=Sí |
|||||||||
| 03 | Anillo de retención izqu. | SWA | 1 | 51167308641 | Shop at ECS Tuning | |||||
| 03 | Anillo de retención dcha. | SWA | 1 | 51167308642 | Shop at ECS Tuning | |||||
| Para vehículos con Surround View |
S5DLA=No |
|||||||||
| 04 | Parte inferior de la carcasa izquierda | 1 | 51167308647 | Shop at ECS Tuning | ||||||
| 04 | Parte inferior de la carcasa derecha | 1 | 51167308648 | Shop at ECS Tuning | ||||||
| Para vehículos con Surround View |
S5DLA=Sí |
|||||||||
| 04 | Parte inferior de la carcasa izquierda | CAM | 1 | 51167308651 | Shop at ECS Tuning | |||||
| 04 | Parte inferior de la carcasa derecha | CAM | 1 | 51167308652 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=Sí S456A=Sí S459A=Sí |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=Sí S456A=Sí S459A=No |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=Sí S456A=No S459A=Sí |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=Sí S456A=No S459A=No |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=No S456A=Sí S459A=Sí |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=No S456A=Sí S459A=No |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=No S456A=No S459A=Sí |
|||||||||
| 05 | Accionam. retrovisor ext. Memory | 2 | 08/2006 | 67137337847 | Shop at ECS Tuning | |||||
| Para vehículos con Retrovisor int./ext. antidesl. autom. y Asiento confortable con memoria y Regulación asiento eléc. ajuste memoriz. |
S430A=No S456A=No S459A=No |
|||||||||
| 05 | Accionamiento retrovisor exertior izq. | 1 | 67137337843 | Shop at ECS Tuning | ||||||
| 05 | Accionamiento retrovisor exertior der. | 1 | 67137337844 | Shop at ECS Tuning | ||||||
| 06 | Tornillo hexagonal con tuerca | M6X16 | 6 | 07147175594 | Shop at ECS Tuning | |||||
| 07 | Recubrimientos para base retrovisor | 1 | 51167266080 | Shop at ECS Tuning | ||||||
| 08 | Intermitente adicional espejo izq. | 1 | 63137308535 | Shop at ECS Tuning | ||||||
| 08 | Intermitente adicional espejo der. | 1 | 63137308536 | Shop at ECS Tuning | ||||||
| 09 | Kit de reparación cable retrovisor ext. | 1 | 61359853372 | Shop at ECS Tuning | ||||||
