Moldura M faldón / arco de rueda for BMW 8 Series G14 Convertible 840dX (2020)

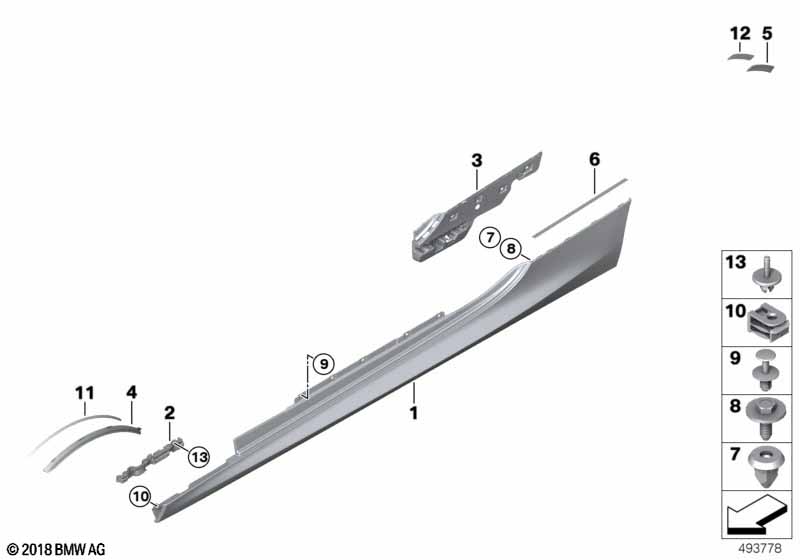

This Moldura M faldón / arco de rueda technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con Paquete aerodinámico M |
S715A=Sí |
||||||||
| Para vehículos con Paquete aerodinámico M |
S715A=Sí |
|||||||||
| 01 | Revestimiento estribera izq. imprim. | 1 | 51778078759 | Shop at ECS Tuning | ||||||
| 01 | Revestimiento estribera der. imprim. | 1 | 51778078760 | Shop at ECS Tuning | ||||||
| 02 | Asiento p umbral izqu. | 1 | 51777429053 | Shop at ECS Tuning | ||||||
| 02 | Asiento p umbral dcha. | 1 | 51777429054 | Shop at ECS Tuning | ||||||
| 03 | Asiento p umbral tras. izqu. | 1 | 51777429059 | Shop at ECS Tuning | ||||||
| 03 | Asiento p umbral tras. dcha. | 1 | 51777429060 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=Sí |
|||||||||
| 04 | Moldura pasarruedas del. izq. | 1 | 51117473079 | Shop at ECS Tuning | ||||||
| 04 | Moldura pasarruedas del. der. | 1 | 51117473080 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=No |
|||||||||
| 04 | Moldura pasarruedas del. izq. | 1 | 51117473079 | Shop at ECS Tuning | ||||||
| 04 | Moldura pasarruedas del. der. | 1 | 51117473080 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=No L8AAA=Sí |
|||||||||
| 04 | Moldura pasarruedas del. izq. | 1 | 51117473079 | Shop at ECS Tuning | ||||||
| 04 | Moldura pasarruedas del. der. | 1 | 51117473080 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=Sí |
|||||||||
| 05 | Moldura pasarruedas tras izq. | 1 | 51779479131 | Shop at ECS Tuning | ||||||
| 05 | Moldura pasarruedas tras der. | 1 | 51779479132 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=No |
|||||||||
| 05 | Moldura pasarruedas tras izq. | 1 | 51779479131 | Shop at ECS Tuning | ||||||
| 05 | Moldura pasarruedas tras der. | 1 | 51779479132 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=No L8AAA=Sí |
|||||||||
| 05 | Moldura pasarruedas tras izq. | 1 | 51779479131 | Shop at ECS Tuning | ||||||
| 05 | Moldura pasarruedas tras der. | 1 | 51779479132 | Shop at ECS Tuning | ||||||
| 06 | Folio protectero | 1 | 51777447109 | Shop at ECS Tuning | ||||||
| 06 | Folio protectero derecho | 1 | 51777447110 | Finalizado | Shop at ECS Tuning | |||||
| 07 | Tuerca de expansion | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Tornillo hexagonal para chapa | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 09 | Remache dilatable | D = 8MM | 10 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=Sí |
|||||||||
| 10 | Cinta adhesiva lado izquierdo | 1 | 51779479129 | Shop at ECS Tuning | ||||||
| 10 | Cinta adhesiva lado derecho | 1 | 51779479130 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=Sí L8AAA=No |
|||||||||
| 10 | Cinta adhesiva lado izquierdo | 1 | 51779479129 | Shop at ECS Tuning | ||||||
| 10 | Cinta adhesiva lado derecho | 1 | 51779479130 | Shop at ECS Tuning | ||||||
| Para vehículos con versión para el japón y Version para China |
L807A=No L8AAA=Sí |
|||||||||
| 10 | Cinta adhesiva lado izquierdo | 1 | 51779479129 | Shop at ECS Tuning | ||||||
| 10 | Cinta adhesiva lado derecho | 1 | 51779479130 | Shop at ECS Tuning | ||||||
| 12 | Tuerca de plástico clip C | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 13 | Remache dilatable | 4 | 07147213303 | Shop at ECS Tuning | ||||||
Notas
- Finalizado = La pieza ya es descontinuada.
