Asiento delantero riel de asiento for BMW 5 Series E60 525i (2005)

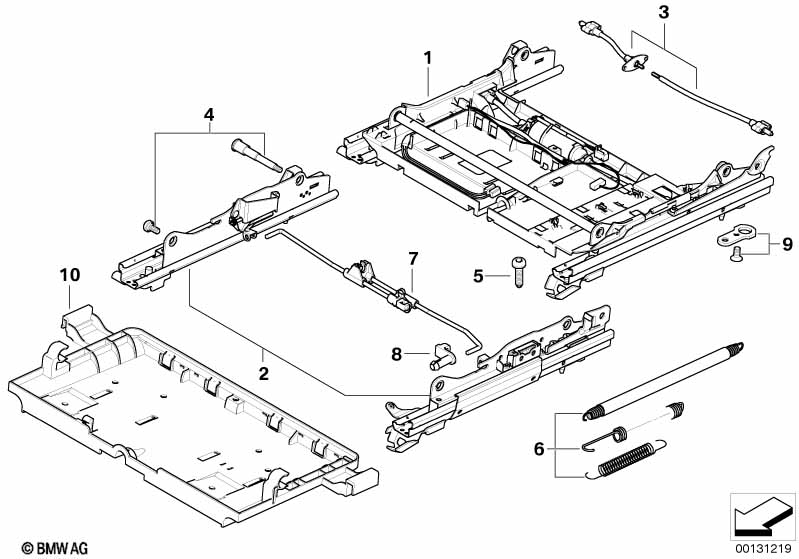

This Asiento delantero riel de asiento technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con Asiento confortable con memoria o Regulación asiento eléc. ajuste memoriz. o Asiento deportivo o Asiento multifuncional M |
S456A=Sí S459A=Sí S481A=Sí S4MAA=Sí |
||||||||
| Para vehículos con Asiento confortable con memoria |
S456A=Sí |
|||||||||
| 01 | Riel de asiento derecho | 1 | 04/2004 | 01/2008 | 52107075940 | $418.72 | Shop at ECS Tuning | |||
| Para vehículos con Asiento multifuncional M o Asiento confortable con memoria Lado del acompañante |
S4MAA=Sí S456A=Sí |
|||||||||
| 01 | Riel de asiento derecho | 1 | 04/2004 | 01/2008 | 52107075940 | $418.72 | Shop at ECS Tuning | |||
| Para vehículos con Regulación asiento eléc. ajuste memoriz. o Asiento deportivo Lado del acompañante |
S459A=Sí S481A=Sí |
|||||||||
| 01 | Riel de asiento derecho | 1 | 52109146338 | $426.29 | Shop at ECS Tuning | |||||
| 01 | Riel de asiento derecho | 1 | 04/2004 | 01/2008 | 52107075458 | $395.12 | Finalizado | Shop at ECS Tuning | ||
| Para vehículos con Regulación asiento eléc. ajuste memoriz. o Asiento deportivo Lado del conductor |
S459A=Sí S481A=Sí |
|||||||||
| 01 | Riel de asiento izquierda | 1 | 52107075459 | $418.72 | Shop at ECS Tuning | |||||
| Para vehículos con Asiento deportivo |
S481A=Sí |
|||||||||
| 02 | Riel de asiento exterior izquierda | 1 | 52107120191 | $74.31 | Shop at ECS Tuning | |||||
| 02 | Riel de asiento exterior derecho | 1 | 52107120192 | $74.31 | Shop at ECS Tuning | |||||
| 02 | Riel de asiento interior izquierda | 1 | 52107120193 | $92.84 | Shop at ECS Tuning | |||||
| 02 | Riel de asiento interior derecho | 1 | 52107120194 | $92.84 | Shop at ECS Tuning | |||||
| Para vehículos con Asiento deportivo Lado del acompañante |
S481A=Sí |
|||||||||
| 02 | Riel de asiento exterior derecho | 1 | 04/2004 | 01/2008 | 52107120192 | $74.31 | Shop at ECS Tuning | |||
| Para vehículos con Asiento deportivo Lado del conductor |
S481A=Sí |
|||||||||
| 02 | Riel de asiento exterior izquierda | EBS | 1 | 04/2004 | 01/2008 | 52107156219 | $73.65 | Finalizado | Shop at ECS Tuning | |
| Para vehículos con Asiento confortable con memoria o Regulación asiento eléc. ajuste memoriz. o Asiento deportivo |
S456A=Sí S459A=Sí S481A=Sí |
|||||||||
| 03 | Juego arbol flexible | L170 / L249 | 2 | 52107132801 | $87.78 | Shop at ECS Tuning | ||||
| 04 | Juego tornillos | 2 | 52107068060 | $21.66 | Shop at ECS Tuning | |||||
| 05 | Tornillo cabeza cil. | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| Asiento básico semieléctrico | ||||||||||
| 06 | Juego muelle | 2 | 52107120190 | $14.41 | Shop at ECS Tuning | |||||
| 07 | Varillaje de desbloqueo | 2 | 52107120195 | $12.45 | Shop at ECS Tuning | |||||
| 08 | Clip | 4 | 52108157406 | $3.48 | Shop at ECS Tuning | |||||
| Para vehículos con Asiento confortable con memoria o Regulación asiento eléc. ajuste memoriz. o Asiento deportivo |
S456A=Sí S459A=Sí S481A=Sí |
|||||||||
| 09 | Conjunto adaptador riel | 2 | 52107117852 | $247.75 | Finalizado, +core | Shop at ECS Tuning | ||||
| Asiento básico semieléctrico | ||||||||||
| 10 | Soporte mecanismo de mando | 2 | 52106972075 | $17.45 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
