Molduras de respaldo asiento trasero for BMW 5 Series G30 LCI 520dX (2022)

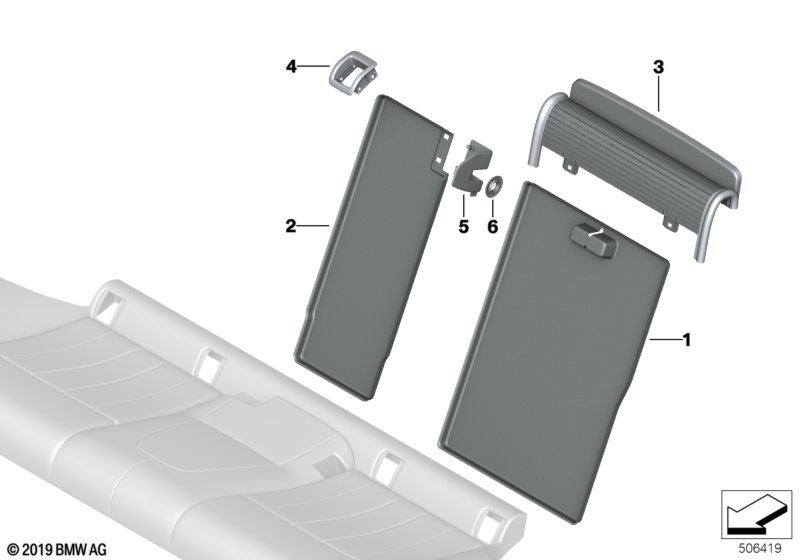

This Molduras de respaldo asiento trasero technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Sistema para cargas largas |
S465A=Sí |
|||||||||
| 01 | Revestimiento apoyabrazo izquierdo | 40% | 1 | 52207436511 | Shop at ECS Tuning | |||||
| 01 | Revestimiento apoyabrazo derecho | 40% | 1 | 52207436512 | Shop at ECS Tuning | |||||
| Para vehículos con Sistema para cargas largas y Tela junction / antracita o Tela/cuero plectoide / antracita o Tela Rhombicle alcántara antracita o Leatherette beige camberra o Cuero sintético canberra beige o cuero sintético "Leatherette/negro" o Sensatec perforado/beis canberra o Sensatec perforado/coñac o Sensatec perforado/negro o Cuero Dakota/canberra-beige o Cuero Dakota/beige Canberra/costura excl o Cuero Dakota beige Canberra o cuero "Dakota/elfenbein-weiss" o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero Dakota/negro/costura excl. o Cuero Dakota canberrabeige/negro o Cuero Dakota/negro/contraste azul o Cuero Dakota/cognac o Cuero Dakota/coñac/costura exclusiva o Cuero "Dakota"/schwarz o Cuero Dakota/azul noche/costura exclusiv o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/negro/costura excl o Cuero excl.napa/moca/costura exclusiva |
S465A=Sí BYAT=Sí CNAT=Sí HRAT=Sí K8CY=Sí K8FY=Sí K8SW=Sí KHFY=Sí KHRI=Sí KHSW=Sí LCCY=Sí LCDO=Sí LCEA=Sí LCEW=Sí LCFF=Sí LCFI=Sí LCFK=Sí LCFY=Sí LCNL=Sí LCRI=Sí LCRO=Sí LCSW=Sí LCTJ=Sí LZFF=Sí LZFI=Sí LZFK=Sí LZNI=Sí |
|||||||||
| 01 | Revestimiento apoyabrazo izquierdo | 40% | 1 | 52207436511 | Shop at ECS Tuning | |||||
| 01 | Revestimiento apoyabrazo derecho | 40% | 1 | 52207436512 | Shop at ECS Tuning | |||||
| 02 | Revestimiento respaldo central | 20% | 1 | 52207436509 | Shop at ECS Tuning | |||||
| Para vehículos con Sistema para cargas largas y Tela junction / antracita o Tela/cuero plectoide / antracita o Tela Rhombicle alcántara antracita o Leatherette beige camberra o Cuero sintético canberra beige o cuero sintético "Leatherette/negro" o Sensatec perforado/beis canberra o Sensatec perforado/coñac o Sensatec perforado/negro o Cuero Dakota/canberra-beige o Cuero Dakota/beige Canberra/costura excl o Cuero Dakota beige Canberra o cuero "Dakota/elfenbein-weiss" o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero Dakota/negro/costura excl. o Cuero Dakota canberrabeige/negro o Cuero Dakota/negro/contraste azul o Cuero Dakota/cognac o Cuero Dakota/coñac/costura exclusiva o Cuero "Dakota"/schwarz o Cuero Dakota/azul noche/costura exclusiv o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/negro/costura excl o Cuero excl.napa/moca/costura exclusiva |
S465A=Sí BYAT=Sí CNAT=Sí HRAT=Sí K8CY=Sí K8FY=Sí K8SW=Sí KHFY=Sí KHRI=Sí KHSW=Sí LCCY=Sí LCDO=Sí LCEA=Sí LCEW=Sí LCFF=Sí LCFI=Sí LCFK=Sí LCFY=Sí LCNL=Sí LCRI=Sí LCRO=Sí LCSW=Sí LCTJ=Sí LZFF=Sí LZFI=Sí LZFK=Sí LZNI=Sí |
|||||||||
| 02 | Revestimiento respaldo central | 20% | 1 | 52207436509 | Shop at ECS Tuning | |||||
| 04 | Moldura accionamiento central | CAN. BEIGE | 1 | 52207436792 | Shop at ECS Tuning | |||||
| 04 | Moldura accionamiento central | ELF. WEISS | 1 | 52207436793 | Shop at ECS Tuning | |||||
| 04 | Moldura accionamiento central | SCHWARZ | 1 | 52207436794 | Shop at ECS Tuning | |||||
| Para vehículos con Sistema para cargas largas y cuero "Dakota/elfenbein-weiss" o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/blanco marfil |
S465A=Sí LCEW=Sí LCFF=Sí LCFI=Sí LZFF=Sí LZFI=Sí |
|||||||||
| 04 | Moldura accionamiento central | ELF. WEISS | 1 | 52207436793 | NoS | Shop at ECS Tuning | ||||
| Para vehículos con Sistema para cargas largas y Leatherette beige camberra o Cuero sintético canberra beige o Sensatec perforado/beis canberra o Cuero Dakota/canberra-beige o Cuero Dakota/beige Canberra/costura excl o Cuero Dakota beige Canberra o Cuero Dakota canberrabeige/negro |
S465A=Sí K8CY=Sí K8FY=Sí KHFY=Sí LCCY=Sí LCDO=Sí LCEA=Sí LCFY=Sí |
|||||||||
| 04 | Moldura accionamiento central | CAN. BEIGE | 1 | 52207436792 | Shop at ECS Tuning | |||||
| Para vehículos con Sistema para cargas largas y Tela junction / antracita o Tela/cuero plectoide / antracita o Tela Rhombicle alcántara antracita o cuero sintético "Leatherette/negro" o Sensatec perforado/coñac o Sensatec perforado/negro o Cuero Dakota/negro/costura excl. o Cuero Dakota/negro/contraste azul o Cuero Dakota/cognac o Cuero Dakota/coñac/costura exclusiva o Cuero "Dakota"/schwarz o Cuero Dakota/azul noche/costura exclusiv o Cuero exclusivo napa/negro/costura excl o Cuero excl.napa/moca/costura exclusiva |
S465A=Sí BYAT=Sí CNAT=Sí HRAT=Sí K8SW=Sí KHRI=Sí KHSW=Sí LCFK=Sí LCNL=Sí LCRI=Sí LCRO=Sí LCSW=Sí LCTJ=Sí LZFK=Sí LZNI=Sí |
|||||||||
| 04 | Moldura accionamiento central | SCHWARZ | 1 | 52207436794 | Shop at ECS Tuning | |||||
| Para vehículos con Sistema para cargas largas y Tela junction / antracita o Tela/cuero plectoide / antracita o Tela Rhombicle alcántara antracita o Leatherette beige camberra o Cuero sintético canberra beige o cuero sintético "Leatherette/negro" o Sensatec perforado/beis canberra o Sensatec perforado/coñac o Sensatec perforado/negro o Cuero Dakota/canberra-beige o Cuero Dakota/beige Canberra/costura excl o Cuero Dakota beige Canberra o cuero "Dakota/elfenbein-weiss" o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero Dakota/negro/costura excl. o Cuero Dakota canberrabeige/negro o Cuero Dakota/negro/contraste azul o Cuero Dakota/cognac o Cuero Dakota/coñac/costura exclusiva o Cuero "Dakota"/schwarz o Cuero Dakota/azul noche/costura exclusiv o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/negro/costura excl o Cuero excl.napa/moca/costura exclusiva |
S465A=Sí BYAT=Sí CNAT=Sí HRAT=Sí K8CY=Sí K8FY=Sí K8SW=Sí KHFY=Sí KHRI=Sí KHSW=Sí LCCY=Sí LCDO=Sí LCEA=Sí LCEW=Sí LCFF=Sí LCFI=Sí LCFK=Sí LCFY=Sí LCNL=Sí LCRI=Sí LCRO=Sí LCSW=Sí LCTJ=Sí LZFF=Sí LZFI=Sí LZFK=Sí LZNI=Sí |
|||||||||
| 05 | Panel protector cierre para cinturón | SCHWARZ | 1 | 52207436800 | NoS | Shop at ECS Tuning | ||||
| Para vehículos con Sistema para cargas largas y cuero "Dakota/elfenbein-weiss" o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero dakota/elfenbein-weiss/costur.ex. o Cuero exclusivo napa/blanco marfil o Cuero exclusivo napa/blanco marfil |
S465A=Sí LCEW=Sí LCFF=Sí LCFI=Sí LZFF=Sí LZFI=Sí |
|||||||||
| 06 | Adorno | ELFENBEINWEISS | 1 | 52207436808 | NoS | Shop at ECS Tuning | ||||
| Para vehículos con Sistema para cargas largas y Leatherette beige camberra o Cuero sintético canberra beige o Sensatec perforado/beis canberra o Cuero Dakota/canberra-beige o Cuero Dakota/beige Canberra/costura excl o Cuero Dakota beige Canberra o Cuero Dakota canberrabeige/negro |
S465A=Sí K8CY=Sí K8FY=Sí KHFY=Sí LCCY=Sí LCDO=Sí LCEA=Sí LCFY=Sí |
|||||||||
| 06 | Adorno | CANBERRABEIGE | 1 | 52207436807 | NoS | Shop at ECS Tuning | ||||
| Para vehículos con Sistema para cargas largas y Tela junction / antracita o Tela/cuero plectoide / antracita o Tela Rhombicle alcántara antracita o cuero sintético "Leatherette/negro" o Sensatec perforado/coñac o Sensatec perforado/negro o Cuero Dakota/negro/costura excl. o Cuero Dakota/negro/contraste azul o Cuero Dakota/cognac o Cuero Dakota/coñac/costura exclusiva o Cuero "Dakota"/schwarz o Cuero Dakota/azul noche/costura exclusiv o Cuero exclusivo napa/negro/costura excl o Cuero excl.napa/moca/costura exclusiva |
S465A=Sí BYAT=Sí CNAT=Sí HRAT=Sí K8SW=Sí KHRI=Sí KHSW=Sí LCFK=Sí LCNL=Sí LCRI=Sí LCRO=Sí LCSW=Sí LCTJ=Sí LZFK=Sí LZNI=Sí |
|||||||||
| 06 | Panel protector pernos cierre | SCHWARZ | 1 | 52207436809 | Shop at ECS Tuning | |||||
Notas
- NoS = No Stock (Pieza central no disp.)
