Techo panorámico piezas adosadas for BMW 5 Series G31 Touring 520i (2018)
This Techo panorámico piezas adosadas technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con Techo panorámico de cristal |
S402A=Sí |
||||||||

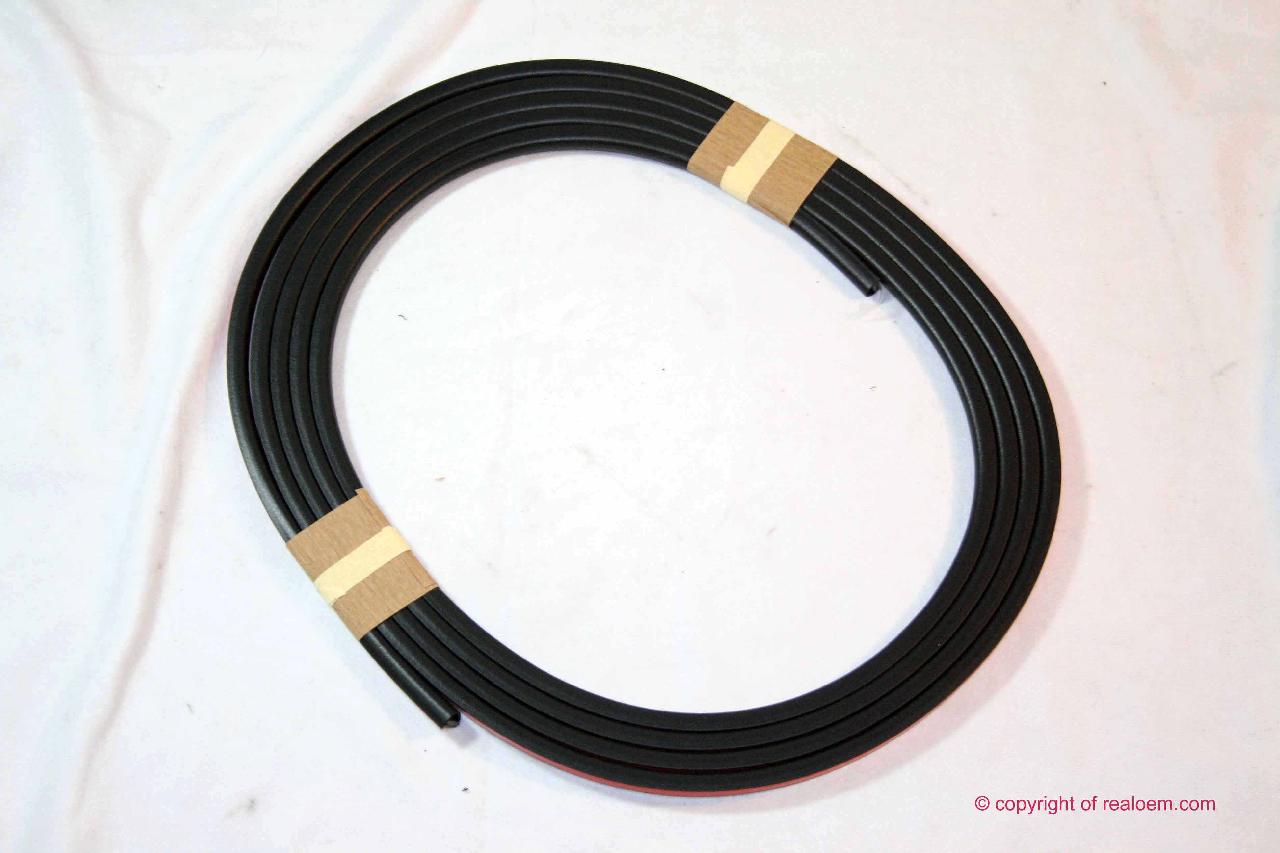

| 01 | Junta continua | L=4090 | 1 | 54107199533 | $30.68 | Finalizado | Shop at ECS Tuning | |||
| 01 | Junta continua | L=4300 | 1 | 54107430946 | Shop at ECS Tuning | |||||
| 02 | Mecanismo cubierta vidrio delante | 1 | 54107474474 | Shop at ECS Tuning | ||||||
| 03 | Cable accionamiento persiana prot.solar | 1 | 54107474481 | Shop at ECS Tuning | ||||||
| 04 | Cable accionamiento techo cristal delan | 1 | 54107474482 | Shop at ECS Tuning | ||||||
| 05 | Kit reparación patín mecánica delantero | 1 | 54107474480 | Shop at ECS Tuning | ||||||
| 06 | Fuelle | 2 | 54107391880 | Shop at ECS Tuning | ||||||
| 07 | Paramento interior | 1 | 54107474470 | Shop at ECS Tuning | ||||||
| 08 | Parabrisas | 1 | 54107474471 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Alojamiento deflector | 1 | 54107474472 | Shop at ECS Tuning | ||||||
| -- | Tornillo cabeza cil. | 1 | 07149177918 | Shop at ECS Tuning | ||||||
| 09 | Alojamiento deflector | 1 | 54107474472 | Shop at ECS Tuning | ||||||
| 10 | Canaleta vierteaguas | 1 | 54107474473 | NoS | Shop at ECS Tuning | |||||
| 11 | Juego pieza final sellado | 1 | 54107474479 | Shop at ECS Tuning | ||||||
Notas
- Finalizado = La pieza ya es descontinuada.
- NoS = No Stock (Pieza central no disp.)
