Cable rep. del airbag for BMW 5 Series E60 525i (2005)

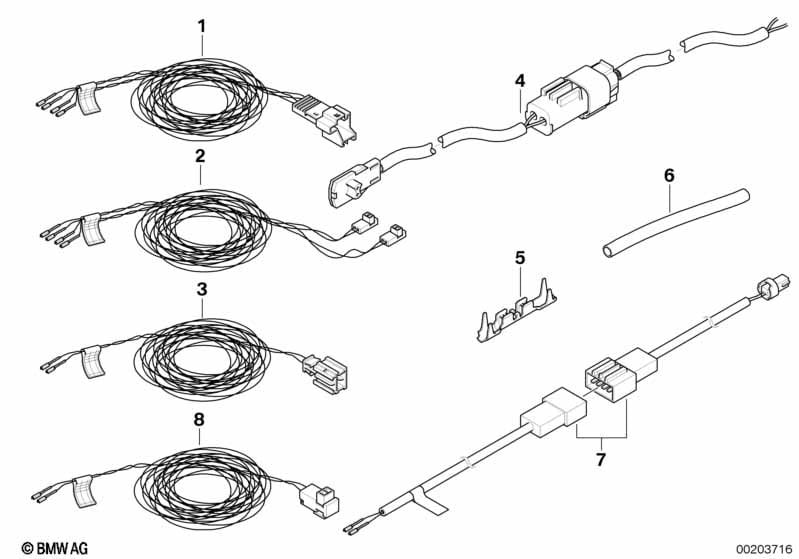

This Cable rep. del airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ¡Atención! Tener en cuenta las instrucciones de reparación "Reparación de los cables del airbag" (REP-ALG-RAE3661-HINW19 - V.5). |
|||||||||
| 01 | Cable rep. airbag acompanante/mando | 1 | 03/2008 | 61129154123 | $30.65 | Shop at ECS Tuning | ||||
| 02 | Cable rep. del airbag ITS para la cabeza | 1 | 03/2008 | 61129154124 | $39.35 | Shop at ECS Tuning | ||||
| 03 | Cable rep. borne seguridad para batería | 1 | 09/2006 | 61129154125 | $19.67 | Shop at ECS Tuning | ||||
| 03 | Cable rep. borne seguridad para batería | 1 | 03/2008 | 61129154125 | $19.67 | Shop at ECS Tuning | ||||
| 04 | Cable rep. tensor de herraje terminal | 1 | 09/2007 | 61129154126 | $39.35 | Shop at ECS Tuning | ||||
| 05 | Conexión de cables | 0.2-0.5 MM² | X | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Tubo flexible contractil | 6X45MM | X | 61135A4F528 | Shop at ECS Tuning | |||||
