Relé DDE K2003a for BMW 1 Series E87 120d (2006)

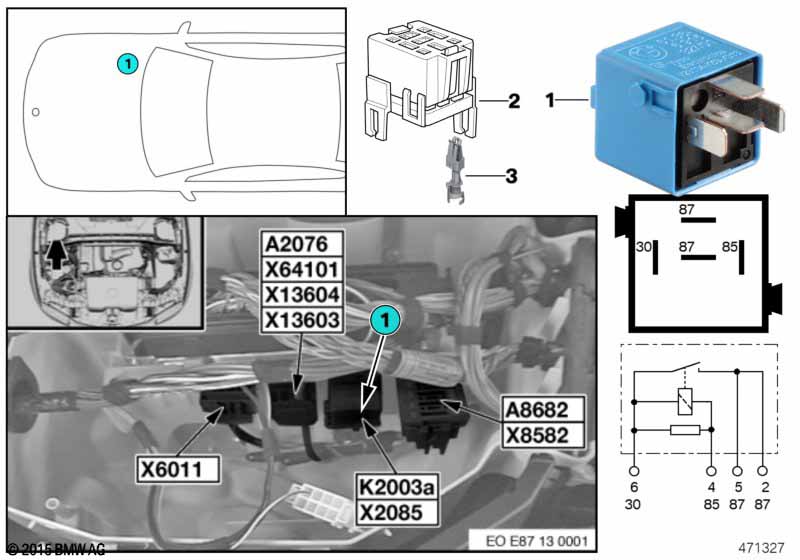

This Relé DDE K2003a technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | La variante de carrocería mostrada en el gráfico sirve solo de ejemplo y puede diferir del original. |
|||||||||
| 01 | Relé contacto de trabajo, azul celeste | 1 | 61366915327 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Zócalo de relé negro blanco | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Contacto resorte plano doble con cable | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Contacto resorte plano doble con cable | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Contacto resorte plano doble con cable | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Contacto resorte plano doble | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Contacto resorte plano doble | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Contacto resorte plano doble | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
