Cables alimentación mazo cables princip. for BMW 7 Series G12 740LiX (2018)

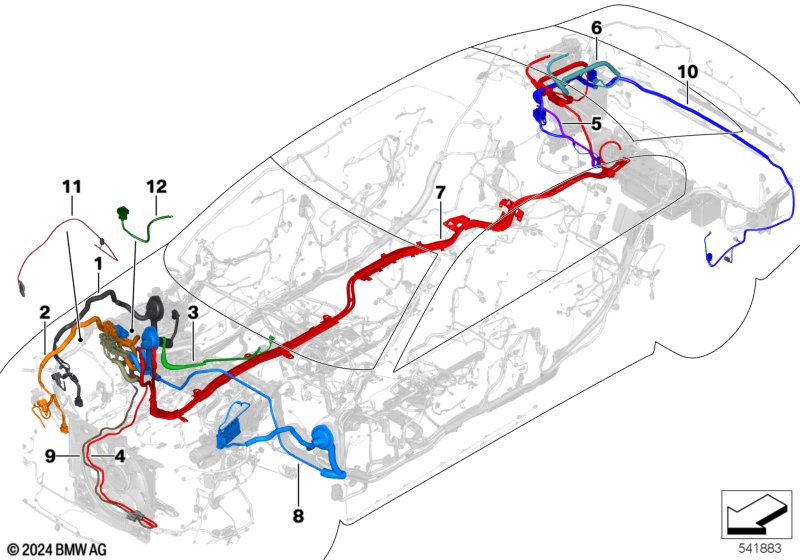

This Cables alimentación mazo cables princip. technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Juego cables rep. electroventilador | 400/600W | 1 | 61119373886 | Shop at ECS Tuning | |||||
| 01 | Juego cables rep. electroventilador | 850/1000W | 1 | 61119373889 | Shop at ECS Tuning | |||||
| 02 | Cable de alimentación electroventilador | 400/600W | 1 | 61119374186 | Shop at ECS Tuning | |||||
| 02 | Cable de alimentación electroventilador | 850/1000W | 1 | 61119374188 | Shop at ECS Tuning | |||||
| 03 | Cable B+ PTC calefacción estacionaria | L= 1956 MM | 1 | 61119373856 | Shop at ECS Tuning | |||||
| 04 | Cable alimentación tensión batería EPS | 25MM² | 1 | 61119373893 | Shop at ECS Tuning | |||||
| Contiene los siguientes compuestos: De Z3*8B borne positivo de la batería distribuidor de corriente batería a Z45*1B borne positivo de la batería distribuidor de corriente batería Slave |
||||||||||
| 05 | Cable alimentac.distribuidor corriente | 35 MM²/L= 455MM | 1 | 61119374075 | Shop at ECS Tuning | |||||
| Contiene los siguientes compuestos: De Z3*9B borne positivo de la batería distribuidor de corriente batería a Z43*2B distribuidor de corriente delantero izquierdo |
||||||||||
| 05 | Cable alimentac.distribuidor corriente | 27MM² L= 4935MM | 1 | 61119862599 | Shop at ECS Tuning | |||||
| 06 | Módulo repa.udad.carga batería adicional | 1 | 61119373906 | Shop at ECS Tuning | ||||||
| 07 | Módulo reparación unidad control alim. | 1 | 61119373907 | Shop at ECS Tuning | ||||||
| 08 | Cable alimentación tensión batería PDM | 16 MM²/L=3623MM | 1 | 61119374199 | Shop at ECS Tuning | |||||
| 09 | Cable de alimentación masa EPS | 25 MM² L=1604MM | 1 | 61119373895 | Shop at ECS Tuning | |||||
| 11 | Cable de alimentación masa FSSP | L=1736MM | 1 | 61116816148 | Shop at ECS Tuning | |||||
