Red de a bordo de 48 V for BMW 5 Series G30 520dX (2020)

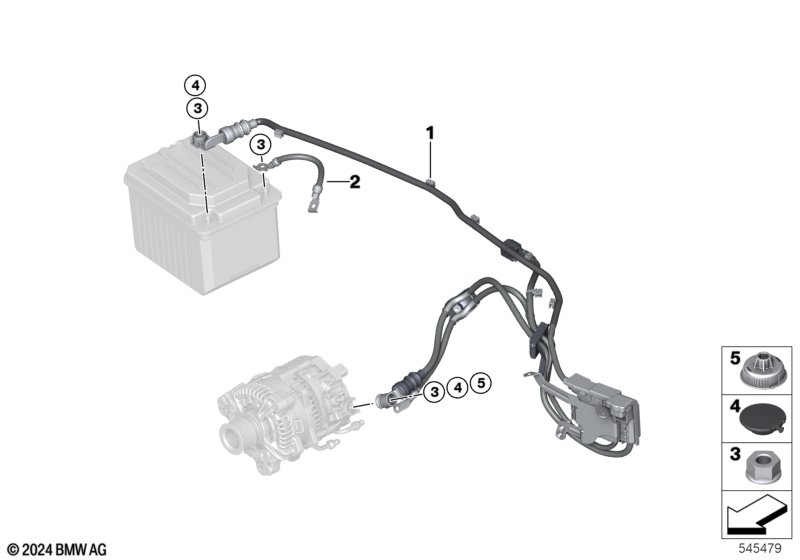

This Red de a bordo de 48 V technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Sistema de recuperación |
S1CEA=Sí |
|||||||||
| 01 | Cable altern.arranq.punto apoyo pos.bat. | 48V | 1 | 12/2020 | 61128795683 | Finalizado | Shop at ECS Tuning | |||
| 01 | Cable altern.arranq.punto apoyo pos.bat. | 48V | 1 | 03/2023 | 61125A37BF3 | Finalizado | Shop at ECS Tuning | |||
| 01 | Cable altern.arranq.punto apoyo pos.bat. | 48V | 1 | 61125A70E69 | NoS | Shop at ECS Tuning | ||||
| 02 | Cable de bateria negativo | 48V | 1 | 61128795681 | Shop at ECS Tuning | |||||
| 03 | Tuerca de bridas | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Cierre de tapa | 48V | 2 | 08/2021 | 61118795761 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
- NoS = No Stock (Pieza central no disp.)
