Lámparas interiores diversas for BMW 7 Series G12 LCI 730LdX (2020)

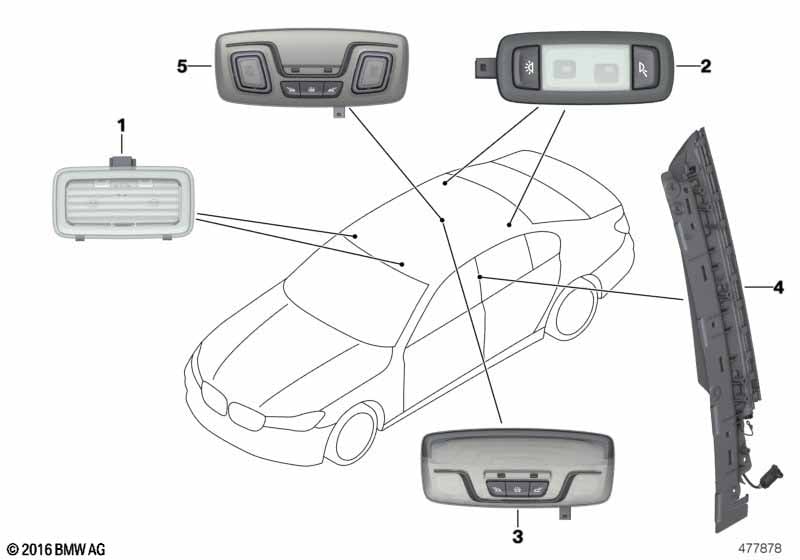

This Lámparas interiores diversas technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luz espejo LED | MSA 3.5K - C | 2 | 63319397852 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Luz espejo LED | LED MAKEUP 3.5K | 2 | 63315A42418 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico izq. | SCHWARZ | 1 | 63319390891 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico der. | SCHWARZ | 1 | 63319390892 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico izq. | CANBERRABEIGE | 1 | 63319390893 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico der. | CANBERRABEIGE | 1 | 63319390894 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico izq. | ELFENBEINWEIS | 1 | 63319390895 | Shop at ECS Tuning | |||||
| 02 | Luz interior techo panorámico der. | ELFENBEINWEIS | 1 | 63319390896 | Shop at ECS Tuning | |||||
| Para vehículos con Techo panorámico de cristal y Techo solar panorámico Sky Lounge y Luz de lectura tras. individual y Luz interior de ambiente |
S402A=No S407A=No S4M8A=No S4URA=No |
|||||||||
| 03 | Luz interior lectura LED detrás centro | 1 | 63316848616 | Shop at ECS Tuning | ||||||
| Para vehículos con Techo panorámico de cristal y Techo solar panorámico Sky Lounge y Luz de lectura tras. individual y Luz interior de ambiente |
S402A=No S407A=No S4M8A=No S4URA=Sí |
|||||||||
| 03 | Luz interior lectura LED detrás centro | 1 | 63316848614 | Shop at ECS Tuning | ||||||
| 04 | Luz láser izq. | 1 | 51425A1CC71 | Shop at ECS Tuning | ||||||
| 04 | Luz láser der. | 1 | 51425A1CC72 | Shop at ECS Tuning | ||||||
| Para vehículos con Techo panorámico de cristal y Techo solar panorámico Sky Lounge y Luz de lectura tras. individual y Luz interior de ambiente |
S402A=No S407A=No S4M8A=Sí S4URA=Sí |
|||||||||
| 05 | Luz interior lectura LED ajustabl.detrás | 1 | 63319474611 | Shop at ECS Tuning | ||||||
| Para vehículos con Techo panorámico de cristal y Techo solar panorámico Sky Lounge y Luz de lectura tras. individual y Luz interior de ambiente |
S402A=No S407A=No S4M8A=Sí S4URA=No |
|||||||||
| 05 | Luz interior lectura LED ajustabl.detrás | 1 | 63316801414 | Shop at ECS Tuning | ||||||
Notas
- Finalizado = La pieza ya es descontinuada.
