Tuberia de aire for BMW 7 Series E23 745i

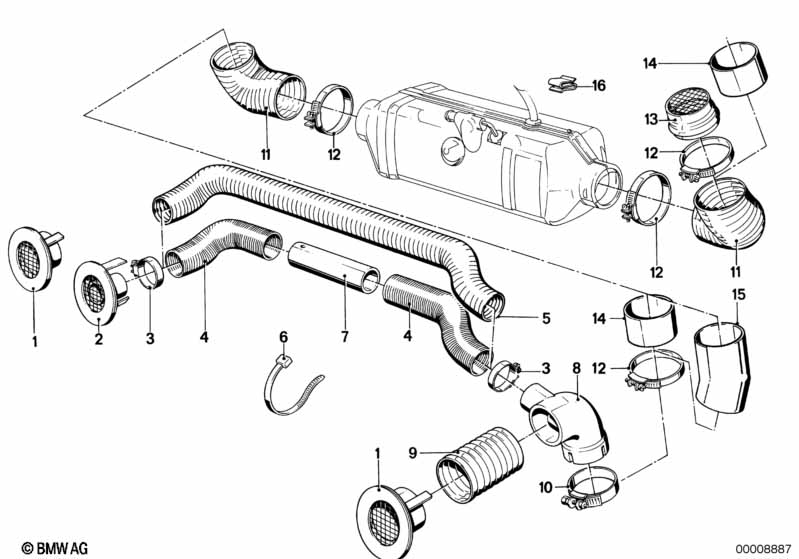

This Tuberia de aire technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Salida de aire | 2 | 64121371599 | Finalizado | Shop at ECS Tuning | |||||
| 02 | Salida de aire | 1 | 64121371609 | Finalizado | Shop at ECS Tuning | |||||
| 03 | Abrazadera tubo flexible | L32-38 | 2 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Tubo flexible aire | D=32MM | 1 | 64121371713 | Finalizado | Shop at ECS Tuning | ||||
| 06 | Conector de cables | L=292MM/B=4,8MM | 1 | 09/1981 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 07 | Tubo de union | 1 | 09/1981 | 64121366168 | Finalizado | Shop at ECS Tuning | ||||
| 08 | Pieza de distribucion | 1 | 64121365923 | Finalizado | Shop at ECS Tuning | |||||
| 09 | Tubo flexible aire | D=50MM | 1 | 64121366166 | $12.16 | Finalizado | Shop at ECS Tuning | |||
| 10 | Abrazadera tensora | 1 | 64121366518 | Finalizado | Shop at ECS Tuning | |||||
| 11 | Tubo flexible aire | 2 | 64121365871 | Finalizado | Shop at ECS Tuning | |||||
| 12 | Abrazadera tubo flexible | L=53-60MM | 4 | 07129952123 | $1.78 | Shop at ECS Tuning | ||||
| 13 | Rejilla protectora p ventilador adicion. | 1 | 64121373994 | $11.27 | Finalizado | Shop at ECS Tuning | ||||
| 14 | Tubo de union | 2 | 09/1981 | 41121868119 | Finalizado | Shop at ECS Tuning | ||||
| 16 | Sujetador de cables | 2 | 12527575212 | $0.78 | Shop at ECS Tuning | |||||
| 16 | Sujetador de cables | 2 | 25111220837 | $0.68 | Finalizado | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
