Tubos flexibles de agua/válvula de agua for BMW 1502-2002tii 2002 (1971)

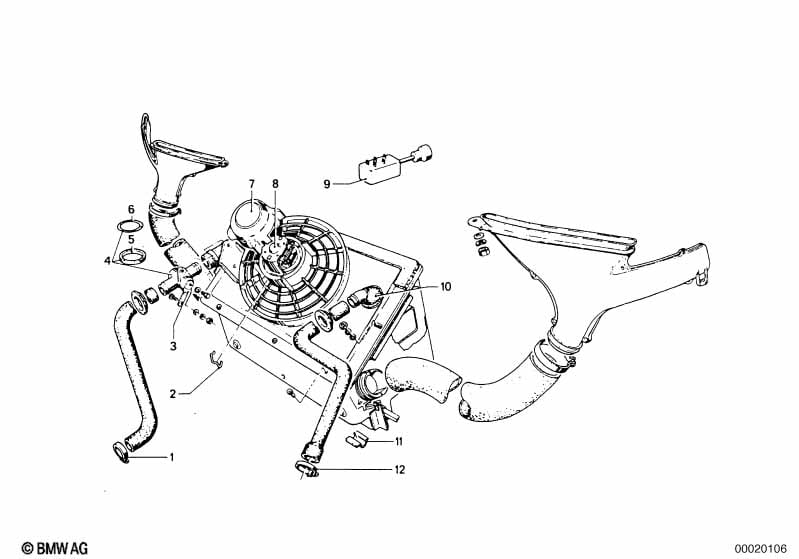

This Tubos flexibles de agua/válvula de agua technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Abrazadera tubo flexible | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 02 | Grapa | 4 | 64111356501 | Finalizado | Shop at ECS Tuning | |||||
| 03 | Palanca | 1 | 03/1966 | 04/1972 | 64111351464 | Finalizado | Shop at ECS Tuning | |||
| 03 | Palanca | 1 | 03/1971 | 07/1977 | 64111353355 | Finalizado | Shop at ECS Tuning | |||
| 04 | Valvula de agua | 1 | 03/1966 | 04/1972 | 64114474105 | $132.71 | Shop at ECS Tuning | |||
| 04 | Valvula de agua | 1 | 03/1971 | 07/1977 | 64111358752 | $317.80 | Finalizado | Shop at ECS Tuning | ||
| 05 | Goma junta | 1 | 03/1966 | 04/1972 | 64111357631 | Finalizado | Shop at ECS Tuning | |||
| 06 | Goma junta | 1 | 03/1971 | 07/1977 | 64111359108 | $5.55 | Finalizado | Shop at ECS Tuning | ||
| 07 | Caperuza | 1 | 64111356502 | Finalizado | Shop at ECS Tuning | |||||
| 08 | Ventilador | 1 | 03/1966 | 04/1972 | 64111351488 | Finalizado | Shop at ECS Tuning | |||
| 08 | Ventilador | 1 | 03/1971 | 07/1977 | 64111356500 | $333.75 | Shop at ECS Tuning | |||
| 10 | Manguito de goma | 2 | 64111353352 | $7.22 | Finalizado | Shop at ECS Tuning | ||||
| 11 | Grapa | 3 | 64114674162 | $2.58 | Finalizado | Shop at ECS Tuning | ||||
| 12 | Abrazadera tubo flexible | L23-29 | 1 | 12/1995 | 07129952111 | $0.93 | Finalizado | Shop at ECS Tuning | ||
| 12 | Abrazadera tubo flexible | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
