Tubos flexibles de agua/válvula de agua for BMW 3 Series E46 318Ci (2003)

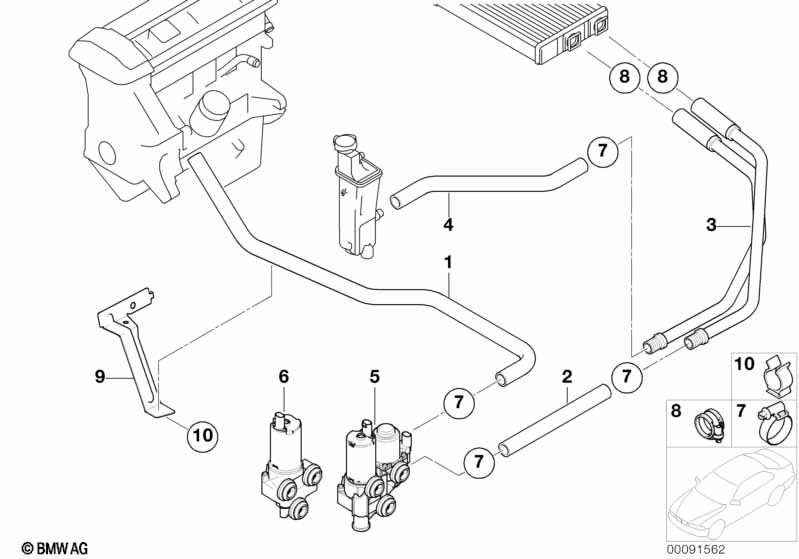

This Tubos flexibles de agua/válvula de agua technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo p motor y bomba de agua adicional | 1 | 64216902683 | $24.34 | Shop at ECS Tuning | |||||
| Para vehículos con Aire acondicionado o Aire acondicionado automático o Prep. acondicionador de aire autom |
S530A=Sí S534A=Sí S857A=Sí |
|||||||||
| 02 | Tubo flex p doble tubo y valvula agua | 1 | 64216902686 | Shop at ECS Tuning | ||||||
| 03 | Tubo de dos | 1 | 64128386544 | Shop at ECS Tuning | ||||||
| 04 | Tubo flex p doble tubo y recipiente comp | 1 | 64216903319 | Shop at ECS Tuning | ||||||
| Para vehículos con Aire acondicionado o Aire acondicionado automático o Prep. acondicionador de aire autom |
S530A=Sí S534A=Sí S857A=Sí |
|||||||||
| 05 | Valvula agua con bomba de agua adicion. | 1 | 64118369807 | $248.88 | Shop at ECS Tuning | |||||
| 07 | Abrazadera tubo flexible | L16-30 | 6 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Abrazadera tubo flexible | 2 | 64216911339 | $2.97 | Shop at ECS Tuning | |||||
| 09 | Soporte | 1 | 64216904212 | Shop at ECS Tuning | ||||||
| 10 | Abrazadera | D=24,5MM | 1 | 61131379580 | $0.63 | Shop at ECS Tuning | ||||
