Manguera líq. refrigerante calef. inde. for BMW 5 Series F10 LCI 520d (2013)

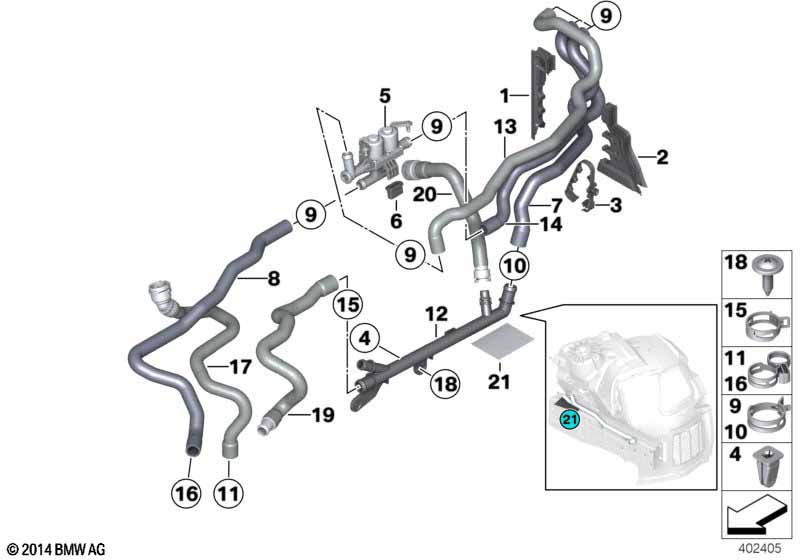

This Manguera líq. refrigerante calef. inde. technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boquilla pieza superior | 1 | 64119144101 | Shop at ECS Tuning | ||||||
| 02 | Boquilla parte inferior | 1 | 64119119425 | Shop at ECS Tuning | ||||||
| 03 | Portamanga, triple | 1 | 64119178439 | Shop at ECS Tuning | ||||||
| 04 | Tuerca de expansion | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Valvula de agua | 1 | 64219310349 | Shop at ECS Tuning | ||||||
| 06 | Soporte de goma | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Manguera retorno | 1 | 64509169918 | Shop at ECS Tuning | ||||||
| 08 | Tubo de admisión | 1 | 64509170345 | Shop at ECS Tuning | ||||||
| 09 | Abrazadera de resorte | D=25MM | 6 | 64213405930 | Shop at ECS Tuning | |||||
| 10 | Abrazadera de resorte | D=28MM | 1 | 64219174340 | Shop at ECS Tuning | |||||
| 11 | Abrazadera de resorte | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 12 | Tubo de líquido refrigerante retorno | 1 | 64219193864 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Lámina estanqueizado | 50X50 | 2 | 07149304034 | Shop at ECS Tuning | |||||
| 13 | Tubo flex.de agua admision 2.2 | 1 | 64539119169 | Shop at ECS Tuning | ||||||
| 14 | Tubo flex.de agua admision 2.1 | 1 | 64539119168 | Shop at ECS Tuning | ||||||
| 15 | Abrazadera tubo flexible | D=30MM | 1 | 64219174341 | Shop at ECS Tuning | |||||
| 16 | Abrazadera tubo flexible | D=27MM | 1 | 64219182742 | Shop at ECS Tuning | |||||
| 17 | Tubo de admisión | 1 | 64509170346 | Shop at ECS Tuning | ||||||
| 18 | Tornillo cabeza cil. | L=18MM | 1 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 19 | Manguera retorno | 1 | 64219193867 | Shop at ECS Tuning | ||||||
| 20 | Manguera retorno | 1 | 64219193866 | Shop at ECS Tuning | ||||||
| 21 | Junta | 40X30MM | 2 | 11/2016 | 51718241617 | $0.98 | Shop at ECS Tuning | |||
| 21 | Lámina estanqueizado | 50X50 | 2 | 07149304034 | Shop at ECS Tuning | |||||
