Carcasa p calefacción/aire acond. for BMW 5 Series G30 530iX (2020)

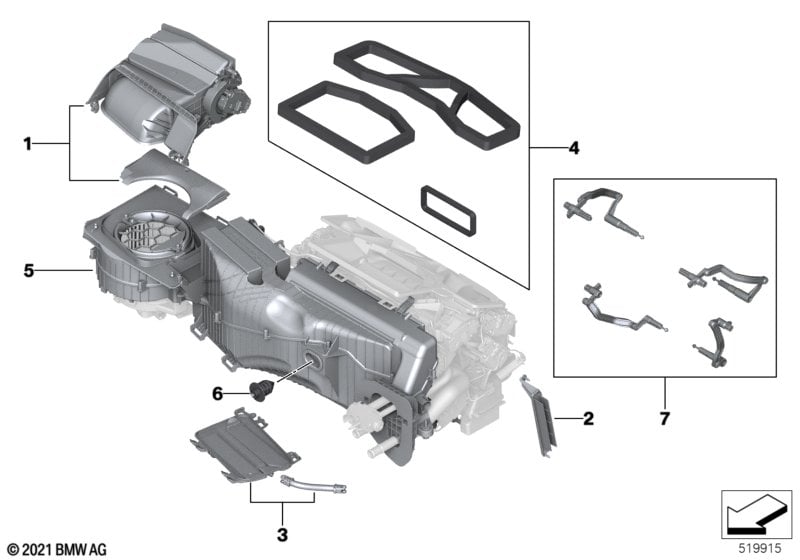

This Carcasa p calefacción/aire acond. technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Climatiz.autom.con regulación de 4 zonas |
S4NBA=No |
|||||||||
| 01 | Carcasa de aspiración | 1 | 64119361726 | Shop at ECS Tuning | ||||||
| Para vehículos con Climatiz.autom.con regulación de 4 zonas |
S4NBA=Sí |
|||||||||
| 01 | Carcasa de aspiración | 1 | 07/2017 | 64119361726 | Shop at ECS Tuning | |||||
| 02 | Tapa calefactor eléctrico adicional | 1 | 64119361718 | Shop at ECS Tuning | ||||||
| 03 | Deckel Mikrofilter | 1 | 64119361720 | Shop at ECS Tuning | ||||||
| 04 | Juego juntas | 1 | 64119361704 | Shop at ECS Tuning | ||||||
| 05 | Carcasa del ventilador | 1 | 64119361722 | Shop at ECS Tuning | ||||||
| 06 | Casquillo | 1 | 64119145230 | Shop at ECS Tuning | ||||||
| 07 | Juego cinemática central | 1 | 64115A3BFF3 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530iX Carcasa p calefacción/aire acond.?
- This technical diagram illustrates the Carcasa p calefacción/aire acond. within the Calefacción y aire acondicionado group for the 5 Series G30 530iX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Carcasa de aspiración (Part #64119361726).
- Which models use the hardware listed in this Carcasa p calefacción/aire acond.?
- The hardware and components featured in the Carcasa p calefacción/aire acond. are specific to the 5 Series G30 530iX produced during 2020. These technical specifications ensure that parts like the Carcasa de aspiración (64119361726) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carcasa p calefacción/aire acond. assembly?
- Each item in the Carcasa p calefacción/aire acond. corresponds to the numbered list below the illustration. For the 5 Series G30 530iX, you can identify the Carcasa de aspiración by locating its position on the schematic, which then links to the official BMW part number 64119361726 for the Calefacción y aire acondicionado section.
