Tuberia refrigeración for BMW 7 Series G11 LCI 740dX (2020)

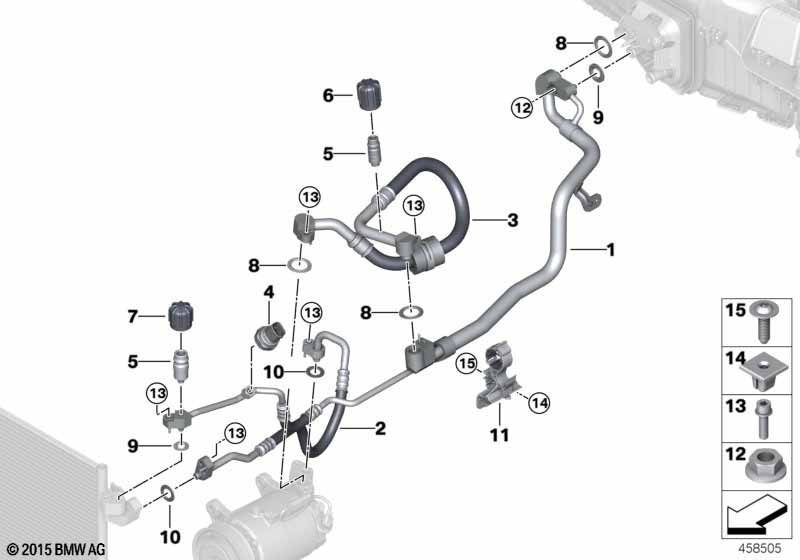

This Tuberia refrigeración technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con ampliación climatización de zona trasera y Agente frigorífico R1234yf |
S4NFA=No S8R9A=Sí |
|||||||||
| 01 | Conducto agente frigorígeno tubo doble | R1234YF | 1 | 64539324800 | Shop at ECS Tuning | |||||
| Para vehículos con ampliación climatización de zona trasera y Agente frigorífico R1234yf |
S4NFA=No S8R9A=No |
|||||||||
| 01 | Conducto agente frigorígeno tubo doble | R134A | 1 | 64539324799 | Shop at ECS Tuning | |||||
| 02 | Tuberia de presion compressor-condensad. | 1 | 64539321597 | Shop at ECS Tuning | ||||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=Sí |
|||||||||
| 03 | Tuberia de aspira. evaporador-compresor | R1234YF | 1 | 64539321598 | Shop at ECS Tuning | |||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=No |
|||||||||
| 03 | Tuberia de aspira. evaporador-compresor | R134A | 1 | 64539311903 | Shop at ECS Tuning | |||||
| 04 | Sensor de presión | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 05 | Valvula de inflacion | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=Sí |
|||||||||
| 06 | Caperuza de cierre línea de succión | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=No |
|||||||||
| 06 | Caperuza de cierre línea de succión | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=Sí |
|||||||||
| 07 | Caperuza de cierre tubería de presión | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| Para vehículos con Agente frigorífico R1234yf |
S8R9A=No |
|||||||||
| 07 | Caperuza de cierre tubería de presión | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Anillo obturador | D=17MM | 3 | 64539284019 | Shop at ECS Tuning | |||||
| 09 | Anillo obturador | D=8MM | 2 | 64539284020 | Shop at ECS Tuning | |||||
| 10 | Anillo obturador | D=11MM | 2 | 64539284018 | Shop at ECS Tuning | |||||
| 11 | Soporte múltiple | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 12 | Tuerca hexagonal con placa | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Tornillo ISA | M8X30-U1-8.8 | 5 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 14 | Tuerca de expansion | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 15 | Tornillo cabeza cil. | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
