Dispositivo de enganche desmont. for BMW 5 Series E60 LCI 525xi (2009)

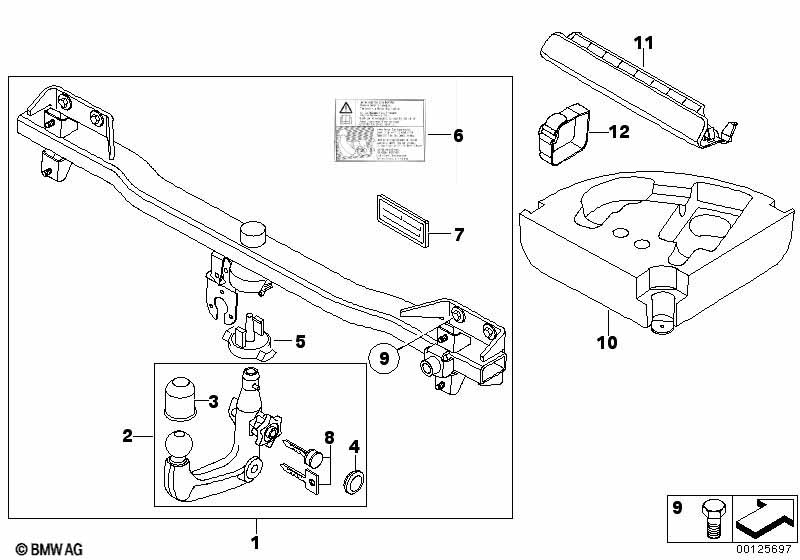

This Dispositivo de enganche desmont. technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Paquete aerodinámico M |
S715A=Sí |
|||||||||
| 01 | Dispositivo de enganche desmont. | 1 | 71606782128 | +core | Shop at ECS Tuning | |||||
| 02 | Cabeza esferica desmontable | 1 | 71606782257 | Finalizado, +core | Shop at ECS Tuning | |||||
| 03 | Caperuza de protecc.p cabeza esferica | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 04 | Caperuza protectora llave | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 05 | Tapon de cierre | 1 | 71601094998 | $8.48 | Shop at ECS Tuning | |||||
| 06 | Rótulo de carga de apoyo | 90KG | 1 | 71601094572 | Shop at ECS Tuning | |||||
| 07 | Placa indicativa | 1 | 71606754330 | Finalizado | Shop at ECS Tuning | |||||
| 08 | Chaveta (code) 2wxx | WESTFALIA | 1 | 71601094282 | $28.18 | Shop at ECS Tuning | ||||
| 09 | Tornillo hexagonal | M10 X 25 | 8 | 71606759754 | $1.53 | Shop at ECS Tuning | ||||
| Para vehículos con Rueda de repuesto de emergencia |
=No |
|||||||||
| 10 | Bandeja herrament. d cabeza esférica | 1 | 71606760993 | $48.61 | Finalizado | Shop at ECS Tuning | ||||
| Para vehículos con Paquete de compartimentos |
S493A=Sí |
|||||||||
| 10 | Bandeja herrament. d cabeza esférica | 1 | 71606769453 | Finalizado, +core | Shop at ECS Tuning | |||||
| Para vehículos con Paquete aerodinámico M |
S715A=Sí |
|||||||||
| 12 | Cinta Velcro | 1 | 71606761446 | Shop at ECS Tuning | ||||||
| 13 | Soporte de caja de contacto | 1 | 71606769304 | Shop at ECS Tuning | ||||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- Finalizado = La pieza ya es descontinuada.
