Asta de la bandera for BMW 7 Series G12 LCI 730LdX (2020)

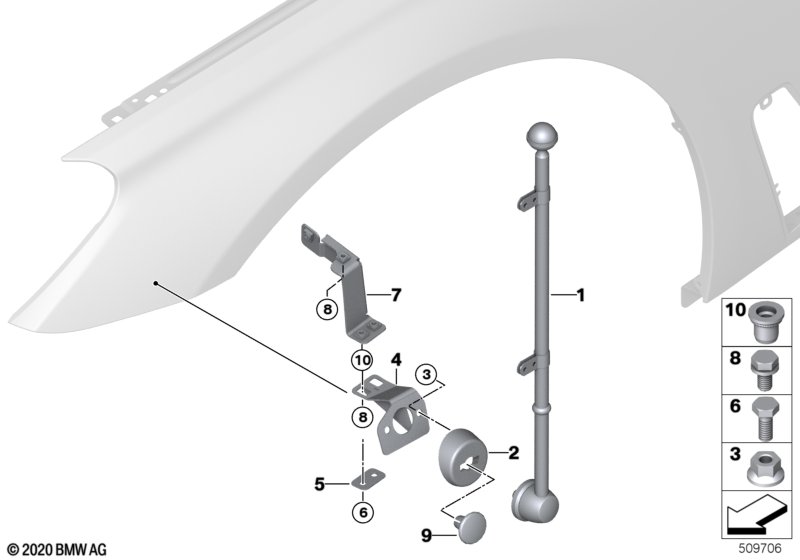

This Asta de la bandera technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ¡Atención! El uso del portaestandarte en el espacio público de circulación solo se permite con la aceptación individual/aprobación y la autorización de las autoridades correspondientes. |
|||||||||
| 01 | Asta de la bandera | 2 | 03/2016 | 72601878398 | $280.78 | Shop at ECS Tuning | ||||
| Para vehículos con Portaestandartes izquierda |
S116A=Sí |
|||||||||
| 02 | Placa de base izquierda | 1 | 72609466715 | Shop at ECS Tuning | ||||||
| Para vehículos con Portaestandartes derecha |
S117A=Sí |
|||||||||
| 02 | Placa de base derech. | 1 | 72609466716 | Shop at ECS Tuning | ||||||
| 03 | Tuerca | M6 | 4 | 03/2016 | 07146973709 | $0.27 | Shop at ECS Tuning | |||
| Para vehículos con Portaestandartes izquierda |
S116A=Sí |
|||||||||
| 04 | Soporte estandarte izq. | 1 | 72609466711 | Shop at ECS Tuning | ||||||
| Para vehículos con Portaestandartes derecha |
S117A=Sí |
|||||||||
| 04 | Soporte estandarte der. | 1 | 72609466712 | Shop at ECS Tuning | ||||||
| 05 | Placa | 2 | 03/2016 | 72608053249 | Shop at ECS Tuning | |||||
| 06 | Tornillo hexagonal con arandela | M6X14-U1-8.8 | 4 | 03/2016 | 07119905525 | $0.47 | Shop at ECS Tuning | |||
| Para vehículos con Portaestandartes izquierda |
S116A=Sí |
|||||||||
| 07 | Soporte estandarte izq. | OBEN | 1 | 72609466713 | Shop at ECS Tuning | |||||
| Para vehículos con Portaestandartes derecha |
S117A=Sí |
|||||||||
| 07 | Soporte estandarte der. | OBEN | 1 | 72609466714 | Shop at ECS Tuning | |||||
| 08 | Tornillo hexagonal con arandela | M6X12-U1 | 10 | 03/2016 | 07119904511 | $0.62 | Shop at ECS Tuning | |||
| 09 | Tapon de cierre | 2 | 03/2016 | 72601860157 | $6.60 | Shop at ECS Tuning | ||||
