base equipo electr. carga manos libres for BMW 5 Series F18 535Li (2009)

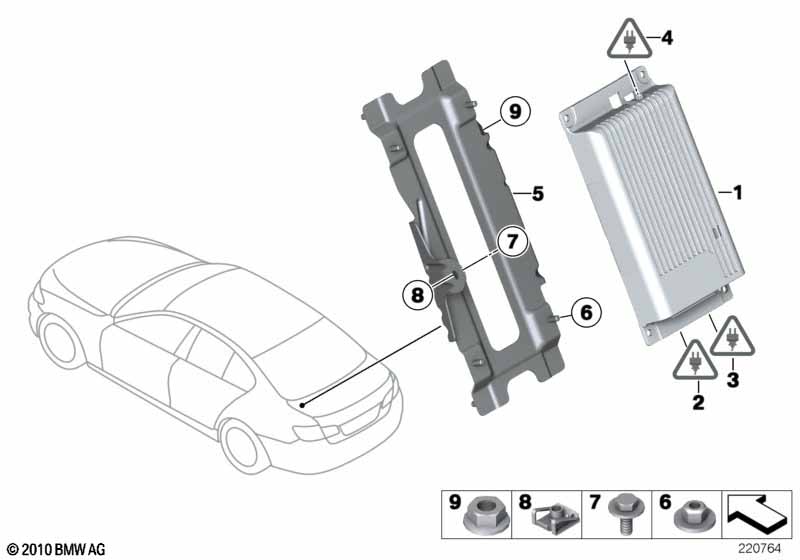

This base equipo electr. carga manos libres technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 535Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Preparación p teléfono móvil c Bluetooth y Interfaz USB/audio y Control Combox |
S644A=Sí S6FLA=No S6VCA=No |
|||||||||
| 01 | Electronica de carga manos libres | 1 | 84109226711 | Shop at ECS Tuning | ||||||
| 05 | Soporte mecanismo de mando | 1 | 65159174271 | Shop at ECS Tuning | ||||||
| 06 | Tuerca hexagonal | M6-8-ZNFE SW | 2 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Tornillo hexagonal con arandela | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 08 | Jaula prestol | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Tuerca hexagonal | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
