Barre anti-rappr.carbone BMW Performance for BMW 3 Series E46 325Ci (2006)

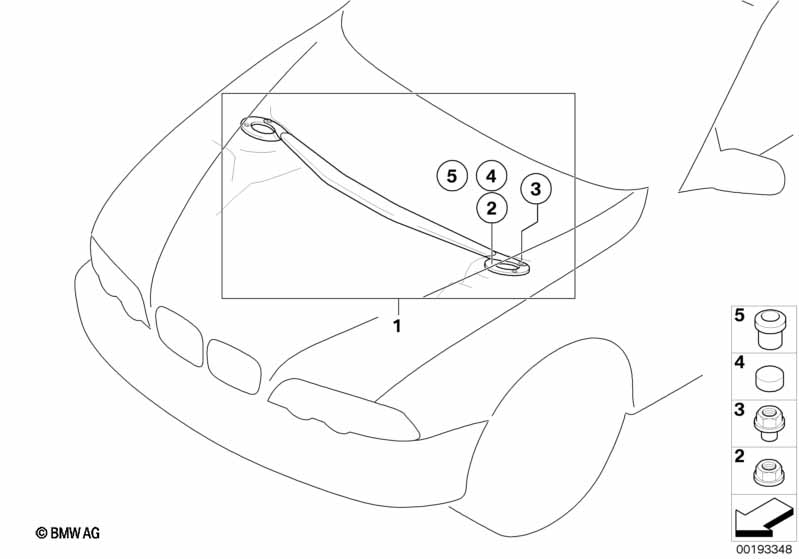

This Barre anti-rappr.carbone BMW Performance technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Montant de suspension | BMW PERFORMANCE | 1 | 51710429378 | $1522.00 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Ecrou autobloquant | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Ecrou autobloquant | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Ecrou à six pans | M8-8-ZNS3 | 4 | 51717895241 | $9.77 | arrêté | Shop at ECS Tuning | |||
| 04 | Cache | 6 | 51717896829 | $3.62 | arrêté | Shop at ECS Tuning | ||||
| 05 | Douille | 1 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Barre anti-rappr.carbone BMW Performance?
- This technical diagram illustrates the Barre anti-rappr.carbone BMW Performance within the Post-équipement/transformation/access. group for the 3 Series E46 325Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Montant de suspension (Part #51710429378).
- Which models use the hardware listed in this Barre anti-rappr.carbone BMW Performance?
- The hardware and components featured in the Barre anti-rappr.carbone BMW Performance are specific to the 3 Series E46 325Ci produced during 2006. These technical specifications ensure that parts like the Montant de suspension (51710429378) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Barre anti-rappr.carbone BMW Performance assembly?
- Each item in the Barre anti-rappr.carbone BMW Performance corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Montant de suspension by locating its position on the schematic, which then links to the official BMW part number 51710429378 for the Post-équipement/transformation/access. section.
