M Performance grille de calandre for BMW 2 Series F45 Active Tourer LCI 225iX (2018)

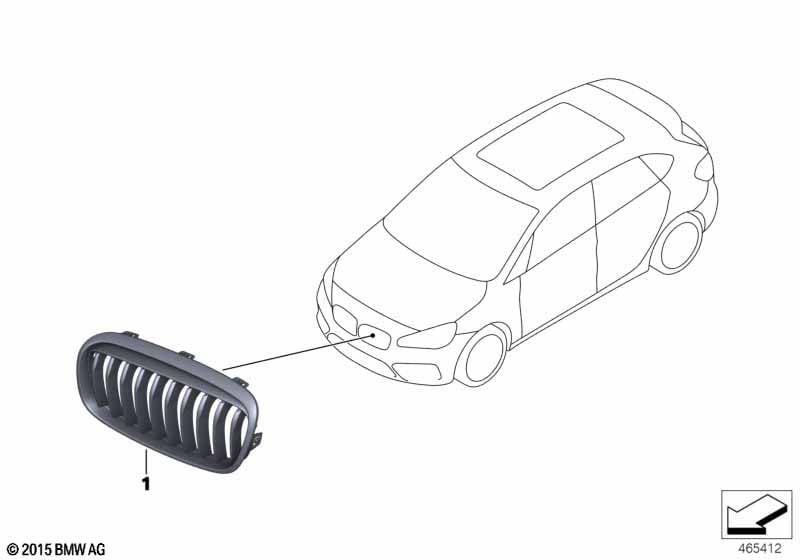

This M Performance grille de calandre technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage n'est pas comp rise dans le post-équipement. La notice de montage doit être imprimée dans la version du jour à pa rtir du catalogue électronique des pièces (ETK) puis donnée au client. Les composants qui ne sont pas ment ionnés dans la notice de montage sont montés conf ormément à ISTA/AIR. |
|||||||||
| 01 | Grille enjoliveur avant noir brillant g. | M PERFORMANCE | 1 | 51712454967 | arrêté | Shop at ECS Tuning | ||||
| 01 | Grille enjoliveur avant noir brill.dr. | M PERFORMANCE | 1 | 51712454968 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
