Tapis de sol caoutchouc for BMW 5 Series E39 525td (1998)

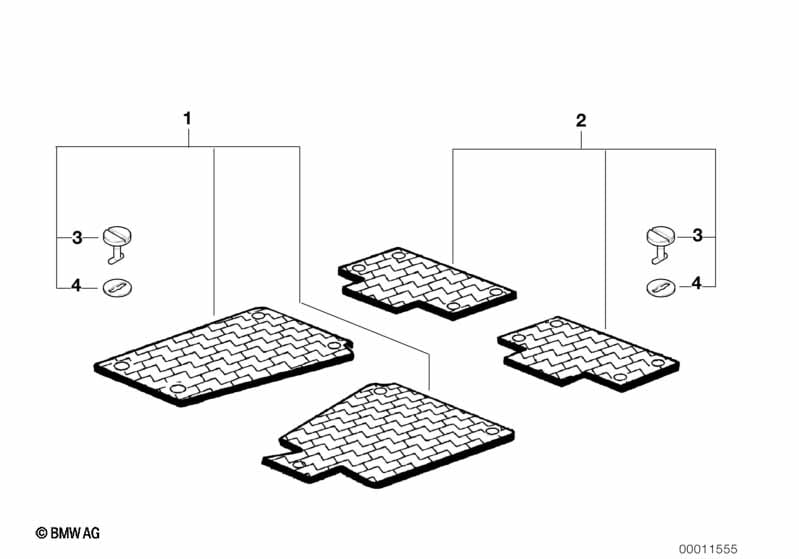

This Tapis de sol caoutchouc technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Version Chine |
L8AAA=Non |
||||||||
| Pour véhicules avec Accumulateur de chaleur latente |
S538A=Oui |
|||||||||
| 01 | Jeu tapis de sol caoutchouc (2) av | ANTHRAZIT | 1 | 02/2000 | 82559405952 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Accumulateur de chaleur latente |
S538A=Non |
|||||||||
| 01 | Jeu tapis de sol caoutchouc (2) av | ANTHRAZIT | 1 | 82559405043 | $48.50 | Shop at ECS Tuning | ||||
| 02 | Jeu tapis de sol caoutchouc arriere | ANTHRAZIT | 1 | 82559405044 | $34.25 | Shop at ECS Tuning | ||||
| 03 | Couvercle 24,5mm | ANTHRAZIT | 1 | 51478116564 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Disque de securite | 1 | 51471881521 | $0.39 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
