Kit de montage moulures int. chrome mat for BMW 5 Series E39 525td (1998)

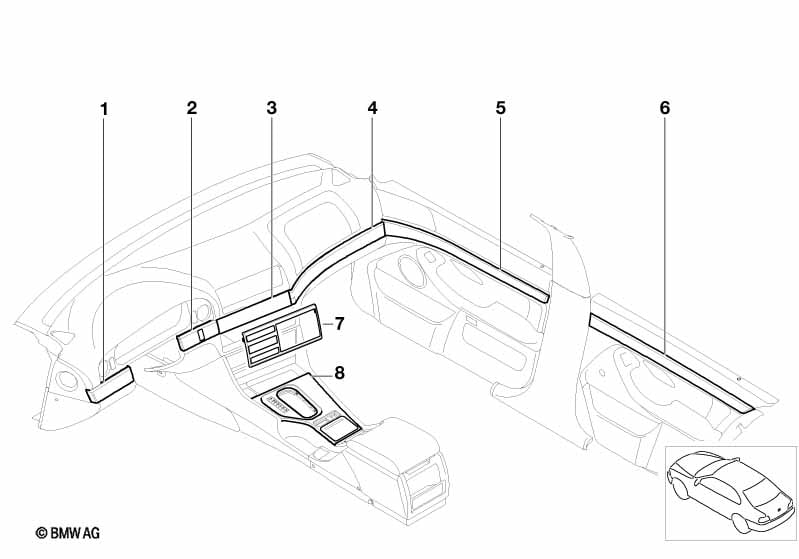

This Kit de montage moulures int. chrome mat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pommeau levier/pommeau levier select. voir HG 25 Pour cet équipement ultér. il n'y a pas des instructions d'installation. Le montage devrait être effectué seulement par le personnel spécialisé, préfériblement par un partenaire BMW. La BMW ne peut pas accepter aucune responsabilité pour des défauts et des dommages résultant du montage incorrect. Temps de montage env. 1,5 h, susceptible de varier en fonction de l'état et de l'équipement du véhicule. |
|||||||||
| 01 | Enjoliveur gauche | MATTCHROM | 1 | 51452695581 | $30.25 | Shop at ECS Tuning | ||||
| 02 | Enjoliveur central gauche | MATTCHROM | 1 | 51452695583 | $30.25 | Shop at ECS Tuning | ||||
| 03 | Enjoliveur central | MATTCHROM | 1 | 51452695589 | $35.00 | Shop at ECS Tuning | ||||
| 04 | Enjoliveur droit | MATTCHROM | 1 | 51452695588 | $52.00 | arrêté | Shop at ECS Tuning | |||
| 05 | Moulure enjoliveuse porte avant gauche | MATTCHROM | 1 | 51412695577 | $58.50 | Shop at ECS Tuning | ||||
| 05 | Moulure enjoliveuse porte avant droit | MATTCHROM | 1 | 51412695578 | $58.50 | Shop at ECS Tuning | ||||
| 06 | Moulure enjoliveuse porte arrière gauche | MATTCHROM | 1 | 51422695579 | $58.50 | Shop at ECS Tuning | ||||
| 06 | Moulure enjoliveuse porte arrière droit | MATTCHROM | 1 | 51422695580 | $58.50 | +vieille matière | Shop at ECS Tuning | |||
| 07 | Cache de moniteur de bord | MATTCHROM | 1 | 09/2000 | 51162695591 | $60.50 | arrêté | Shop at ECS Tuning | ||
| 08 | Element de console centrale, central | MATTCHROM | 1 | 51162695566 | $273.95 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
