Kit aérodynamique M (à partir de 09/01) for BMW 3 Series E46 325i (2005)

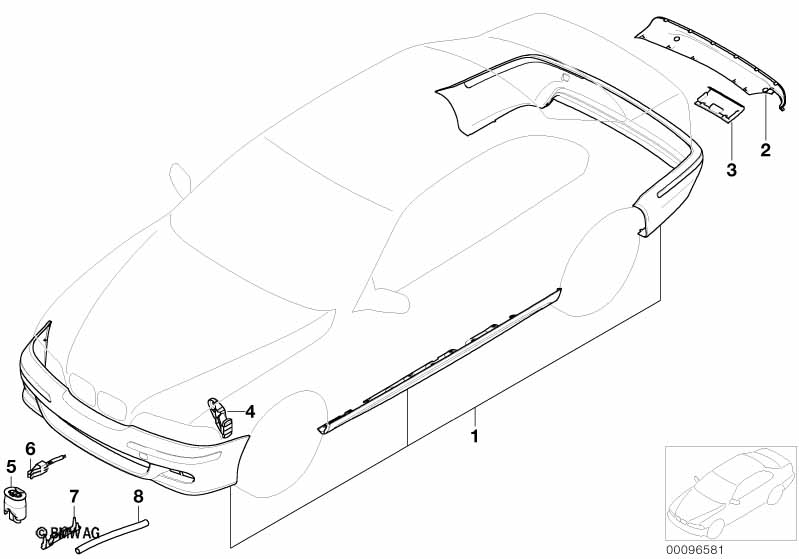

This Kit aérodynamique M (à partir de 09/01) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Les kits d'équipement ultér. indiqués ci-dessous ne sont que des kits de base - ils doivent être complétés encore avec des pièces additionnelles - voir vue éclatée 51 3275 - selon l'équipement de véhicule et le paquet de kit concerné. Equipement ult. possible uniquement pour véhicules avec phares anti- brouillard pas en connexion avec chauffage additionnel BMW Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Kit aérodynamique M | GRUNDIERT | 1 | 09/2001 | 51710139648 | $1458.00 | arrêté | Shop at ECS Tuning | ||
| Pour véhicules avec Système d'aide au stationnement (PDC) |
S508A=Oui |
|||||||||
| 01 | Kit aérodynamique M | GRUNDIERT | 1 | 09/2001 | 51710139647 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Support de pare-chocs arrière | 8 KM/H = 5 MPH | 1 | 09/2001 | 51127894844 | $198.63 | +vieille matière | Shop at ECS Tuning | ||
| uniquement en combinaison avec | ||||||||||
| 02 | Cache inferieur central | M | 1 | 09/2001 | 51127891916 | $149.76 | Shop at ECS Tuning | |||
| Pour véhicules avec Dispositif d'attelage amovible uniquement en combinaison avec |
S235A=Oui |
|||||||||
| 02 | Cache inferieur central | M | 1 | 09/2001 | 51127893073 | $149.76 | Shop at ECS Tuning | |||
| 03 | Couvercle de dispositif d'attelage | M | 1 | 09/2001 | 51127893074 | $41.39 | Shop at ECS Tuning | |||
| 04 | Support p aile avant gauche | 1 | 09/2001 | 51117895415 | $5.28 | Shop at ECS Tuning | ||||
| 04 | Support p aile avant droite | 1 | 09/2001 | 51117895416 | $5.28 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| 05 | Boîtier prise de courant gris | 2 POL. | 2 | 09/2001 | 61138364498 | $2.33 | Shop at ECS Tuning | |||
| 06 | Contact à ressort plat Microtimer av.fil | 1,0 MM² | 4 | 09/2001 | 61130007272 | $2.70 | arrêté | Shop at ECS Tuning | ||
| 07 | Connecteur de câbles | 1.0-0.75 MM² | 4 | 09/2001 | 61138353747 | $0.77 | Shop at ECS Tuning | |||
| 08 | Manchon thermo-retractable | 6X45MM | 4 | 09/2001 | 61131379833 | $1.37 | arrêté | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
