Kit aérodynamique for BMW 5 Series E39 525td (1998)

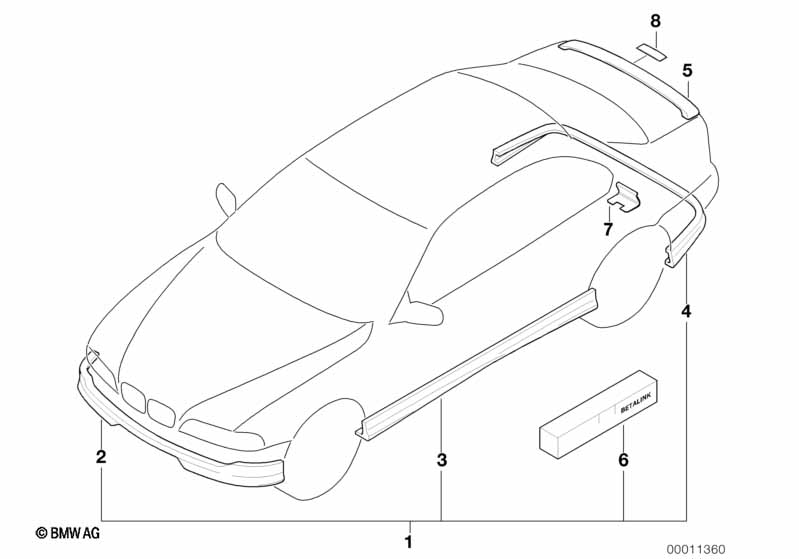

This Kit aérodynamique technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Kit aérodynamique | 1 | 09/2000 | 82619408591 | $1177.00 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Version Chine |
L8AAA=Non |
|||||||||
| 02 | Kit spoiler avant | 1 | 09/2000 | 82629407929 | $428.95 | arrêté, ABE 9790567 | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Colle 1K | 50 ML | 1 | 09/2000 | 82699408866 | $14.79 | arrêté | Shop at ECS Tuning | ||
| 03 | Necess.d.montage moulure d.bas d.caisse | 1 | 82659407931 | $461.95 | arrêté, ABE 9790568 | Shop at ECS Tuning | ||||
| 04 | Kit jupe arriere M'technic | 1 | 82649407930 | $363.95 | arrêté, ABE 9790569 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Chine |
L8AAA=Non |
|||||||||
| 05 | Kit becquet arriere | 1 | 82639407928 | $338.95 | arrêté | Shop at ECS Tuning | ||||
| 06 | Colle 1K | 50 ML | 1 | 82699408866 | $14.79 | arrêté | Shop at ECS Tuning | |||
| 07 | Recouvrement dispositif de remorquage | ERSATZTEIL | 1 | 82699407971 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Chine |
L8AAA=Non |
|||||||||
| 08 | Feu stop spoiler arriere | ERSATZTEIL | 1 | 82699408497 | $108.95 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- ABE = Allgemeine Betriebserlaubnis (Certificats d'homologation générale)
