Kit de montage telecde chauffage auxil. for BMW 5 Series E39 525td (1998)

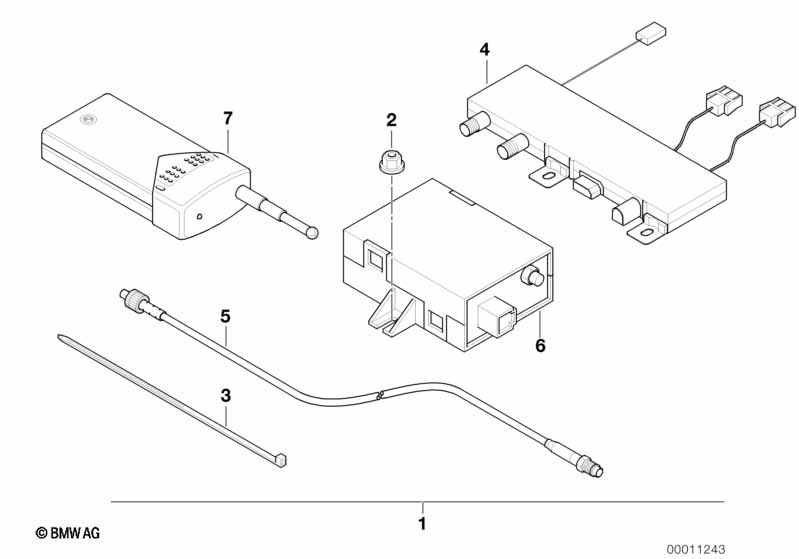

This Kit de montage telecde chauffage auxil. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Kit de montage telecde chauffage auxil. | T60 | 1 | 64509408227 | arrêté | Shop at ECS Tuning | ||||
| 02 | Ecrou plast. axe à filetage à pas gros | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Attache-câble | L=292MM/B=4,8MM | 5 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Ampli-resistance | 1 | 65258380687 | $197.28 | Shop at ECS Tuning | |||||
| 05 | Câble d'antenne télécom. chauff. auxil. | 470MM | 1 | 61108369018 | $22.60 | Shop at ECS Tuning | ||||
| 06 | Recepteur de telecde de chauffage auxil. | 1 | 64128370970 | arrêté | Shop at ECS Tuning | |||||
| 07 | Emetteur de telecde de chauffage auxil. | 1 | 64128370971 | arrêté, SI 640196028 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
