Dispositif d'alarme for BMW 3 Series E36 316i (1993)

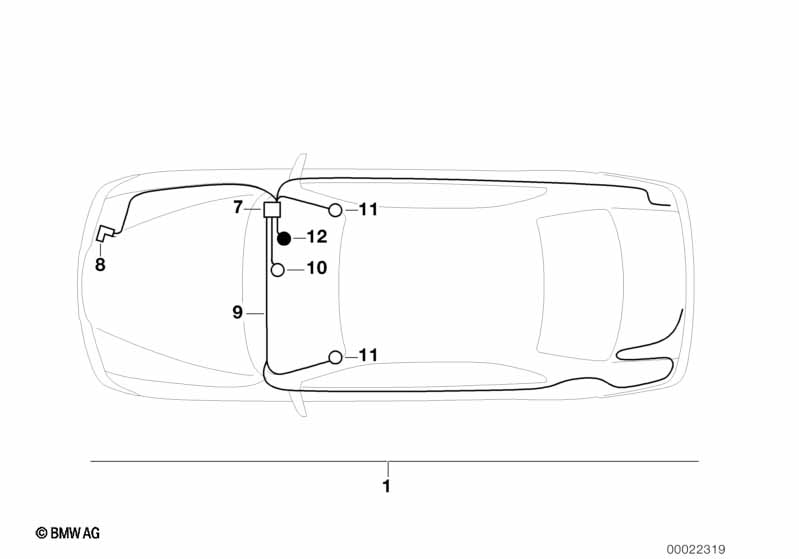

This Dispositif d'alarme technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | seulement pour vehicules avec commande a distance (SA 305) á partir d'une bande Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Kit 2ème monte pour système d'alarme | 1 | 05/1998 | 82919408375 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Kit 2ème monte pour système d'alarme | DWA V E36 | 1 | 65739416541 | +vieille matière | Shop at ECS Tuning | ||||
| 03 | Capteur d'inclinaison | 1 | 82919404617 | $257.80 | arrêté | Shop at ECS Tuning | ||||
| Le capteur d'inclinaison du système d'alarme est monté en option |
||||||||||
| 06 | Relais pour branchement de la trompe | 1 | 82929404776 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| Le raccord avertisseur est monté en option |
||||||||||
| 07 | Boîtier de commande d'alarme | 1 | 82919408597 | arrêté | Shop at ECS Tuning | |||||
| 08 | Sirène | VAR.B,SYSII-IV | 1 | 82929402827 | arrêté | Shop at ECS Tuning | ||||
| 09 | Faisceau | 1 | 82929408606 | Shop at ECS Tuning | ||||||
| 10 | Diode d'alarme | SYSTEM I-IV | 1 | 82929401797 | $16.74 | Shop at ECS Tuning | ||||
| 11 | Capteurs à ultra-sons | S.I-IV,SENSOR | 1 | 82929401798 | arrêté | Shop at ECS Tuning | ||||
| 12 | Verrouillage de sirene avec cable | 1 | 82929405839 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
