Kit de montage dispositif de remorquage for BMW 5 Series E39 525td (1998)

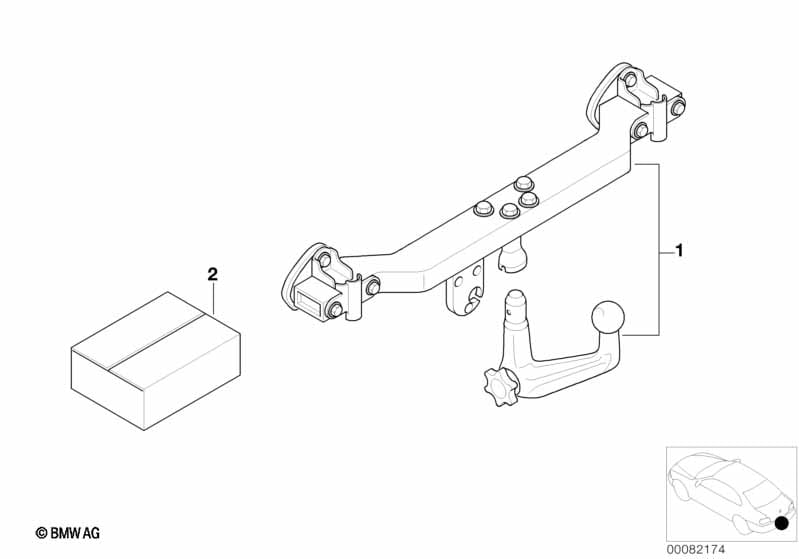

This Kit de montage dispositif de remorquage technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 01 | Dispositif d'attelage à rotule fixe | STAHL | 1 | 71601094386 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Dispositif d'attelage amovible | 1 | 71606768848 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Kit de montage faisceau électrique | 1 | 09/1997 | 09/2000 | 71609410792 | +vieille matière | Shop at ECS Tuning | |||
| Pour véhicules avec Kit aérodynamique M |
S715A=Oui |
|||||||||
| 02 | Kit de montage faisceau électrique | 1 | 09/1997 | 09/2000 | 71609410792 | +vieille matière | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Elément inférieur | M | 1 | 09/1997 | 09/2000 | 51122494800 | $96.43 | Shop at ECS Tuning | ||
| -- | Couvercle de dispositif d'attelage | M | 1 | 09/1997 | 09/2000 | 51122695499 | $42.77 | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
