Kit post-équipt attelage remorque amovi. for BMW 5 Series F10 LCI 525d (2012)

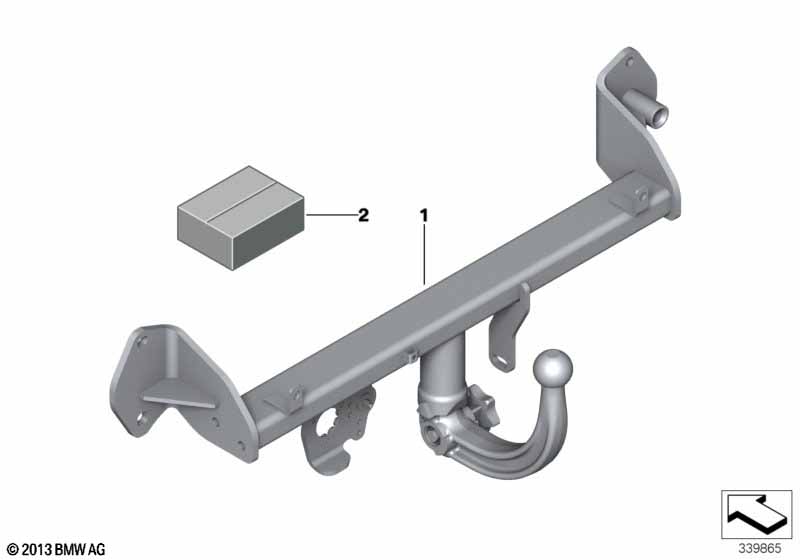

This Kit post-équipt attelage remorque amovi. technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La n otice de montage n'est pas comp rise dans le post-équipement. La n otice de montage doit être imprimée dans la version du jour à partir de l'ETK puis remise au c lient. |
|||||||||
| Pour véhicules avec Version pays chauds |
S823A=Non |
|||||||||
| 01 | Dispositif d'attelage amovible | 1 | 03/2015 | 71606850160 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Cadre de ventilateur avec ventilateur | 600W | 1 | 03/2015 | 17428509741 | Shop at ECS Tuning | ||||
| 01 | kit attelage amovible | 1 | 71606876028 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Cadre de ventilateur avec ventilateur | 600W | 1 | 17428509741 | Shop at ECS Tuning | |||||
| Pour véhicules avec Version pays chauds |
S823A=Oui |
|||||||||
| 01 | Dispositif d'attelage amovible | 1 | 03/2015 | 71606850160 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | kit attelage amovible | 1 | 71606876028 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Kit aérodynamique M Uniquement en combinaison avec boîtier électronique de dispositif d'attelage |
S715A=Oui |
|||||||||
| 02 | Kit de montage faisceau électrique | 1 | 71602354785 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Boîtier électron. dispositif d'attelage | AAG-01 | 1 | 71606884357 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Kit aérodynamique M Uniquement en combinaison avec boîtier électronique de dispositif d'attelage |
S715A=Non |
|||||||||
| 02 | Kit de montage faisceau électrique | 1 | 71602354784 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Boîtier électron. dispositif d'attelage | AAG-01 | 1 | 71606884357 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
