Système Sound Modul for BMW 5 Series E39 525td (1998)

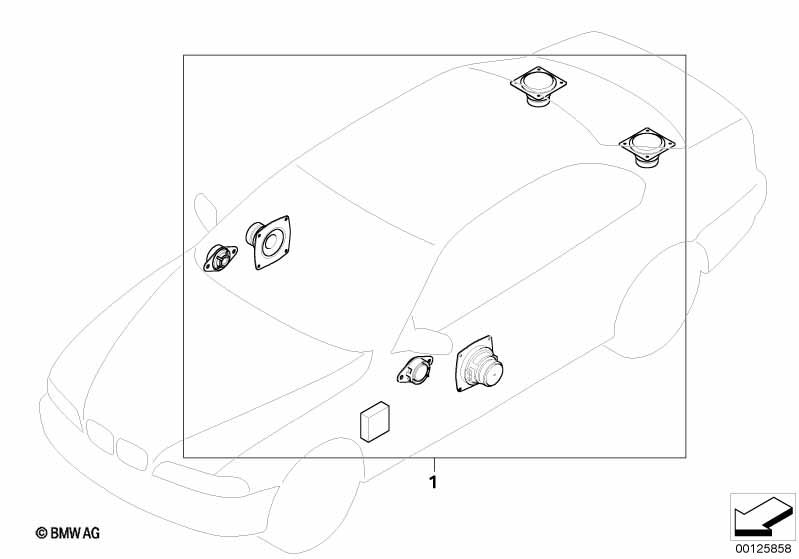

This Système Sound Modul technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention ! Vérifier au préalable que le module de commutation soit bien installé sur la voiture Un module de commutation est uniquement nécessaire pour l'option téléphone dans le cas de véhicules équipés d'un connecteur radio à 17 pôles (c.-à- d. jusqu'en 09/01 max.) !! Pour véhicules avec Système Hi-Fi Harman Kardon et Système de haut-parleurs HiFi |
S674A=Non S676A=Non |
||||||||
| 01 | Sound Modul | E39 LIM. | 1 | 09/1998 | 09/2001 | 82830140506 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| uniquement en combinaison avec | ||||||||||
| -- | Module inverseur | 1 | 09/1998 | 09/2001 | 82890003939 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
