Equipement ult., accoudoir AV coulissant for BMW 5 Series E39 525td (1998)

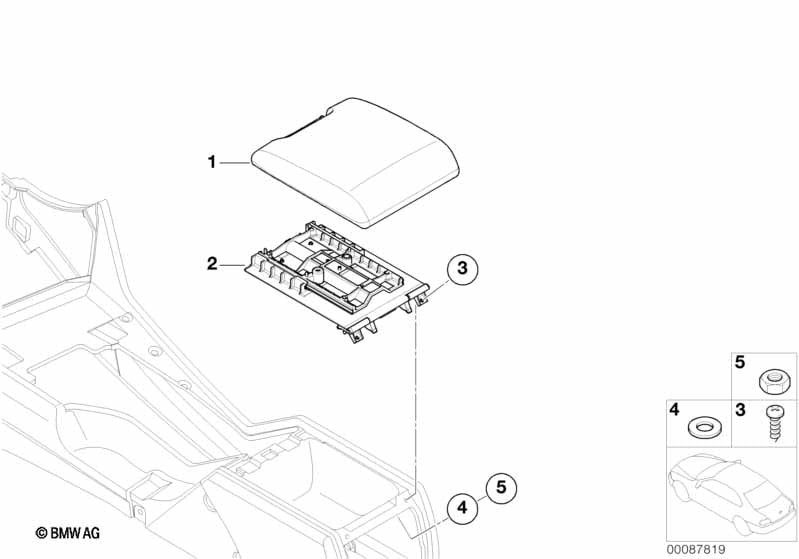

This Equipement ult., accoudoir AV coulissant technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour cet équipement ultér. il n'y a pas des instructions d'installation. Le montage devrait être effectué seulement par le personnel spécialisé, préfériblement par un partenaire BMW. La BMW ne peut pas accepter aucune responsabilité pour des défauts et des dommages résultant du montage incorrect. Temps de montage env. 0,5 h, susceptible de varier en fonction de l'état et de l'équipement du véhicule. |
|||||||||
| 01 | Accoudoir central, simili cuir | SCHWARZ | 1 | 07/2003 | 51168196951 | $192.95 | arrêté | Shop at ECS Tuning | ||
| 01 | Accoudoir central, simili cuir | SCHWARZ | 1 | 51167140687 | $192.95 | Shop at ECS Tuning | ||||
| 01 | Accoudoir central, simili cuir | GRAU | 1 | 07/2003 | 51168196952 | $192.95 | arrêté | Shop at ECS Tuning | ||
| 01 | Accoudoir central, simili cuir | GRAU | 1 | 51167140688 | $192.95 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Accoudoir central, simili cuir | MARINEBLAU | 1 | 07/2003 | 51168196953 | $192.95 | arrêté | Shop at ECS Tuning | ||
| 01 | Accoudoir central, simili cuir | MARINEBLAU | 1 | 51167140689 | $208.95 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Accoudoir central, simili cuir | SANDBEIGE | 1 | 07/2003 | 51168196954 | $192.95 | arrêté | Shop at ECS Tuning | ||
| 01 | Accoudoir central, simili cuir | SANDBEIGE | 1 | 51167140690 | $192.95 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Accoudoir central, simili cuir | ENGLISCHGRÜN | 1 | 07/2003 | 51168196959 | $185.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Accoudoir central, simili cuir | ENGLISCHGRÜN | 1 | 51167140691 | $185.26 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| EXECUTION CUIR MONTANA | ||||||||||
| 01 | Accoudoir central, cuir | SCHWARZ | 1 | 51168190199 | $380.95 | arrêté | Shop at ECS Tuning | |||
| 01 | Accoudoir central, cuir | GRAU | 1 | 51168190200 | $380.95 | arrêté | Shop at ECS Tuning | |||
| 01 | Accoudoir central, cuir | MARINEBLAU | 1 | 51168190201 | $107.95 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Accoudoir central, cuir | SANDBEIGE | 1 | 51168190202 | $380.95 | arrêté | Shop at ECS Tuning | |||
| 02 | Element coulissant d'accoudoir central | 1 | 51168196965 | $136.05 | Shop at ECS Tuning | |||||
| 03 | Vis à tête bombée | M4X12 | 2 | 07119907663 | $0.40 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis à tête bombée | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | 4,3 | 2 | 12/2003 | 07119936412 | $0.09 | arrêté | Shop at ECS Tuning | ||
| 04 | Rondelle | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans | M4-5-2 ZN | 2 | 07119922028 | $0.64 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
