Climatiseur "Economic" pièces singul. for BMW 5 Series E39 528i (1995)

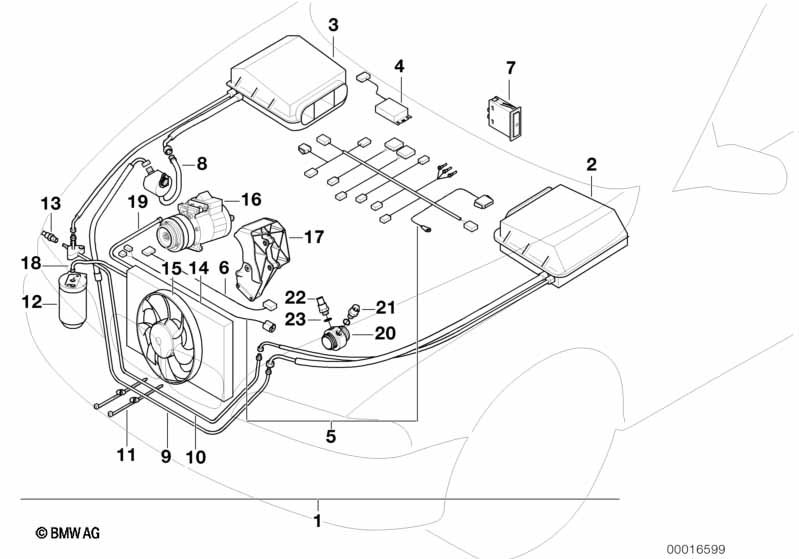

This Climatiseur "Economic" pièces singul. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climatiseur "Economic" complet | E39, M52,LHD | 1 | 04/1998 | 64509404040 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Boitier evaporateur gauche compl. | SSG KLIMA | 1 | 64519404031 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Boitier evaporateur droit compl. | SSG KLIMA | 1 | 64519404032 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 04 | Module de commande climatiseur | 1 | 61359404037 | arrêté | Shop at ECS Tuning | |||||
| 05 | Faisceau pour climatiseur | E39 LHD/RHD | 1 | 61119405996 | arrêté | Shop at ECS Tuning | ||||
| 06 | Câble-adaptateur | 1 | 61129407910 | arrêté | Shop at ECS Tuning | |||||
| 07 | Interrupteur de climatiseur | 1 | 61319403112 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 08 | Raccord dxaspiration compresseur | SSG KLIMA | 1 | 64539404063 | arrêté | Shop at ECS Tuning | ||||
| 09 | Tuyau d'aspiration | SSG KLIMA | 1 | 64539404064 | arrêté | Shop at ECS Tuning | ||||
| 10 | Tuyau de pression | SSG KLIMA | 1 | 64539404065 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 11 | Attaches | SSG KLIMA | 6 | 61139408771 | Shop at ECS Tuning | |||||
| 12 | Secheur | 1 | 64538372985 | $217.53 | Shop at ECS Tuning | |||||
| 13 | Interrupteur de securite | 1 | 64538391639 | $111.38 | +vieille matière | Shop at ECS Tuning | ||||
| 14 | Condenseur | 1 | 64538391647 | $540.42 | Shop at ECS Tuning | |||||
| 15 | Ventilateur | 1 | 64548380780 | $374.55 | Shop at ECS Tuning | |||||
| 16 | Compresseur de climatisation | 1 | 64526914370 | $1130.51 | arrêté | Shop at ECS Tuning | ||||
| 17 | Support de compresseur de climatiseur | 1 | 64551740723 | $71.13 | Shop at ECS Tuning | |||||
| 18 | Tuyau de pression condenseur-secheur | 1 | 64538367976 | $52.22 | Shop at ECS Tuning | |||||
| 19 | Tuyau de pression compresseur-condenseur | 1 | 64538370726 | $145.83 | Shop at ECS Tuning | |||||
| 20 | Raccord de tuyau 108 C | 1 | 17129401998 | arrêté | Shop at ECS Tuning | |||||
| 21 | Interrupteur thermique double | 91/99CEL | 1 | 61318363677 | $32.46 | Shop at ECS Tuning | ||||
| 22 | Interrupteur thermique 108 C | 1 | 61319401973 | $22.21 | Shop at ECS Tuning | |||||
| 23 | Anneau d'étanchéité | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
